Calculate the Actual Current in Each Zone for this following line diagram: 1pu = 0.02114pu<-0.3° T2 0 国。 Line 5+j150 200

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Calculate the Actual Current in Each Zone for this following line diagram: 1pu = 0.02114pu<-0.3° T2 0 国。 Line 5+j150 200

Post by answerhappygod »

1
1 (48.98 KiB) Viewed 25 times

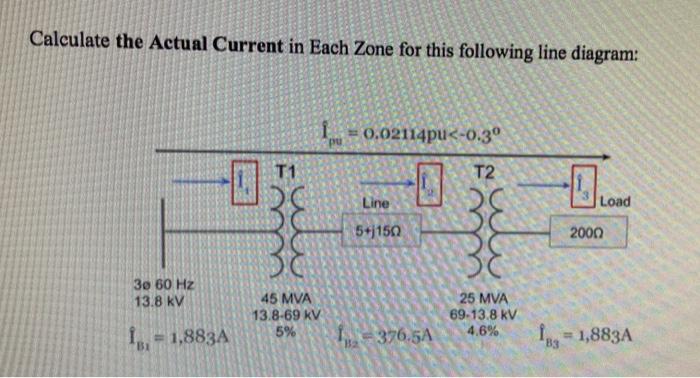

Calculate the Actual Current in Each Zone for this following line diagram: 1pu = 0.02114pu<-0.3° T2 0 国。 Line 5+j150 2000 30 60 Hz 13.8 kV 25 MVA 69-13.8 KV 4.6% 1 = 1,883A 1-376.5A 183= 1,883A Bi T1 DC 45 MVA 13.8-69 kV 5% Load
