The output potential at y for the given input potentials for the network shown in the Figure is a) 9.7 V b) 0.3 V c) 0.7

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The output potential at y for the given input potentials for the network shown in the Figure is a) 9.7 V b) 0.3 V c) 0.7

Post by answerhappygod »

The Output Potential At Y For The Given Input Potentials For The Network Shown In The Figure Is A 9 7 V B 0 3 V C 0 7 1
The Output Potential At Y For The Given Input Potentials For The Network Shown In The Figure Is A 9 7 V B 0 3 V C 0 7 1 (22.36 KiB) Viewed 26 times

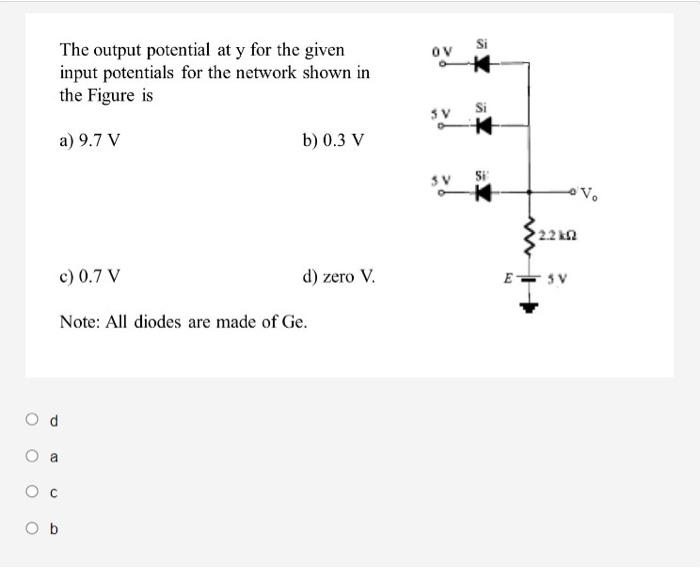

The output potential at y for the given input potentials for the network shown in the Figure is a) 9.7 V b) 0.3 V c) 0.7 V d) zero V. Note: All diodes are made of Ge. a C O OV Si 2.2 k2 E- SV
