From the per-unit equivalent circuit in following figure.1 jX14 J 00 Im jXg jXm V4 Em Figure. 1 V1-1.076L 9.98° pu, X14-

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

From the per-unit equivalent circuit in following figure.1 jX14 J 00 Im jXg jXm V4 Em Figure. 1 V1-1.076L 9.98° pu, X14-

Post by answerhappygod »

From The Per Unit Equivalent Circuit In Following Figure 1 Jx14 J 00 Im Jxg Jxm V4 Em Figure 1 V1 1 076l 9 98 Pu X14 1
From The Per Unit Equivalent Circuit In Following Figure 1 Jx14 J 00 Im Jxg Jxm V4 Em Figure 1 V1 1 076l 9 98 Pu X14 1 (100.48 KiB) Viewed 24 times

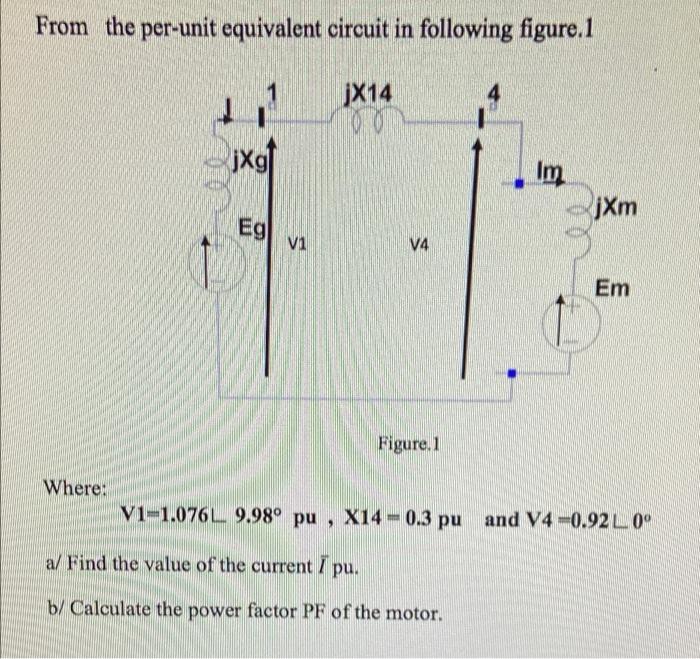

From the per-unit equivalent circuit in following figure.1 jX14 J 00 Im jXg jXm V4 Em Figure. 1 V1-1.076L 9.98° pu, X14-0.3 pu and V4-0.92L 0° Eg v1 V1 Where: a/ Find the value of the current / pu. b/ Calculate the power factor PF of the motor.
