Calculate the Vth and load impedance Z₁ that produces maximum power transfer to the load connected across the terminals

Post by answerhappygod »

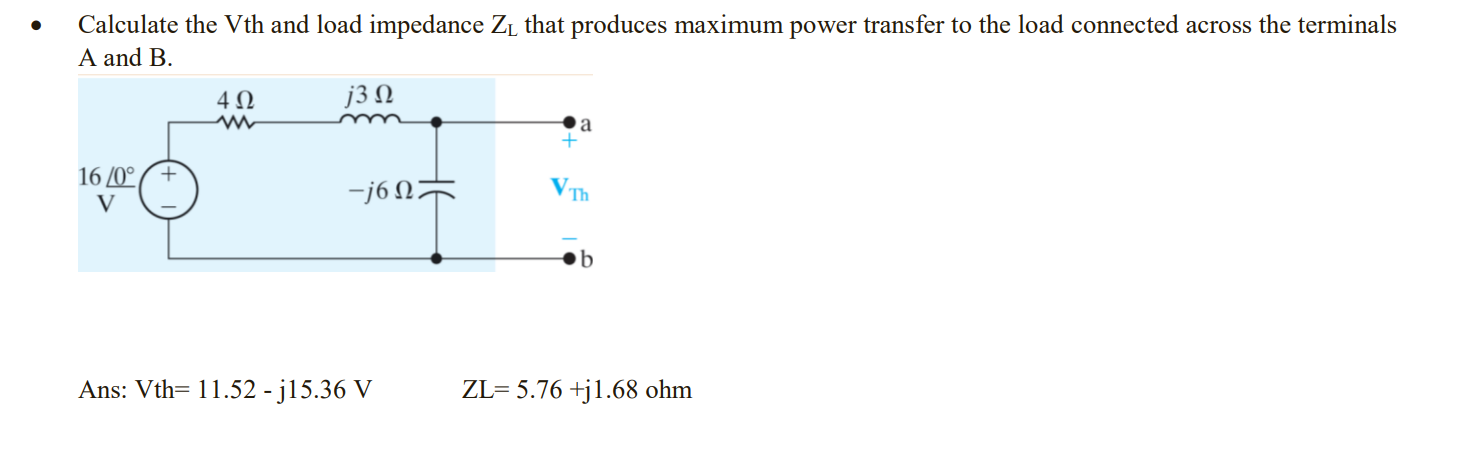

Calculate The Vth And Load Impedance Z That Produces Maximum Power Transfer To The Load Connected Across The Terminals 1
Calculate The Vth And Load Impedance Z That Produces Maximum Power Transfer To The Load Connected Across The Terminals 1 (58.48 KiB) Viewed 14 times
Calculate the Vth and load impedance Z₁ that produces maximum power transfer to the load connected across the terminals A and B. j3 Ω 4Ω ww a 16/0° + V Ans: Vth= 11.52 - j15.36 V m -j6 07 + Th b ZL= 5.76 +j1.68 ohm
