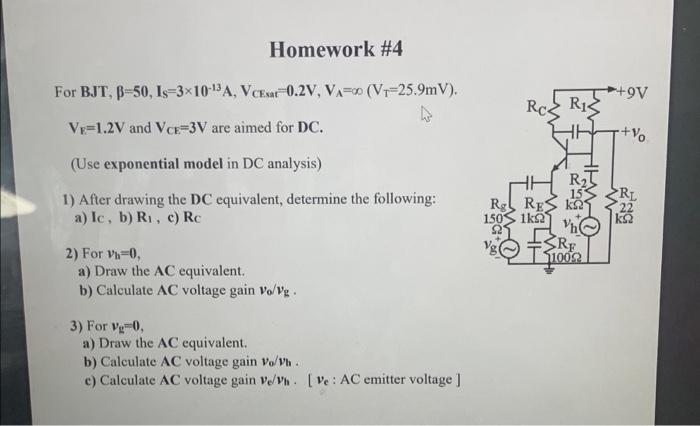

Homework #4 For BJT, B-50, Is-3x10-¹3A, VCEsar 0.2V, VA (V₁-25.9mV). 4 VE 1.2V and VCE 3V are aimed for DC. (Use exponential model in DC analysis) 1) After drawing the DC equivalent, determine the following: a) Ic, b) R₁, c) Rc 2) For Vh=0, a) Draw the AC equivalent. b) Calculate AC voltage gain Vo/vg. 3) For Vg 0, a) Draw the AC equivalent. b) Calculate AC voltage gain Vo/Vh. c) Calculate AC voltage gain ve/vh. [ve: AC emitter voltage ] Rc R₁ R RES 1505 1kΩ 22 RE $10052 +9V -+%
