● Express the total impedance of each circuit in Figure in both polar and rectangular forms XL XL R Μ 50 Ω ΙΚΩ 1.5 ΚΩ 10

Post by answerhappygod »

1
1 (86.03 KiB) Viewed 24 times

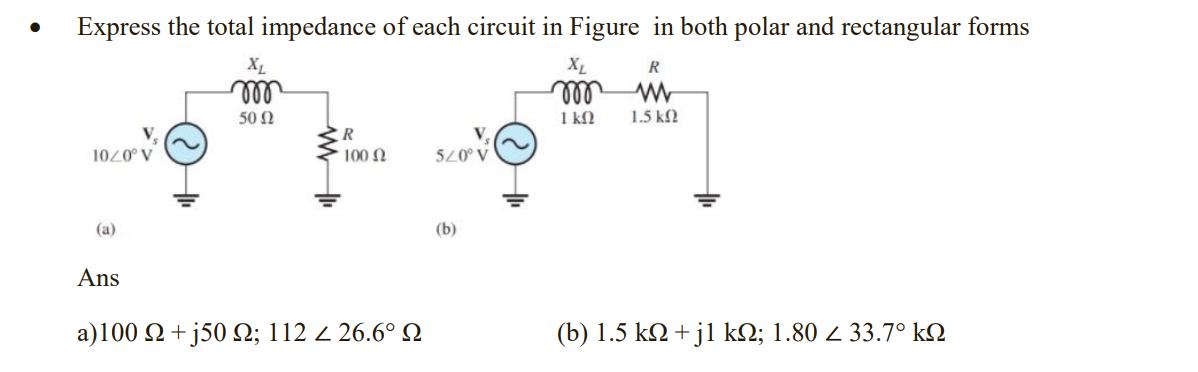

● Express the total impedance of each circuit in Figure in both polar and rectangular forms XL XL R Μ 50 Ω ΙΚΩ 1.5 ΚΩ 10/0° V R 100 Ω 5<0° V (31) (b) Ans a)100 Ω + j50 Ω; 112 < 26.6° Ω (b) 1.5 kΩ + j1 kΩ; 1.80 < 33.7° kΩ
