Question 10 10 For the differential amplifier in Figure 10. Assume Q₁ and Q2 are matched. + 5 V R3 2k Vout1- Vin1 R2 2k

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 10 10 For the differential amplifier in Figure 10. Assume Q₁ and Q2 are matched. + 5 V R3 2k Vout1- Vin1 R2 2k

Post by answerhappygod »

Question 10 10 For The Differential Amplifier In Figure 10 Assume Q And Q2 Are Matched 5 V R3 2k Vout1 Vin1 R2 2k 1
Question 10 10 For The Differential Amplifier In Figure 10 Assume Q And Q2 Are Matched 5 V R3 2k Vout1 Vin1 R2 2k 1 (26.6 KiB) Viewed 58 times

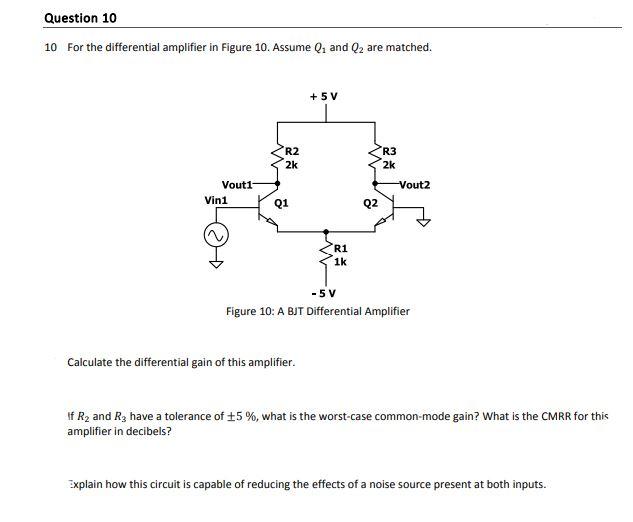

Question 10 10 For the differential amplifier in Figure 10. Assume Q₁ and Q2 are matched. + 5 V R3 2k Vout1- Vin1 R2 2k ≈ R1 1k -Vout2 Q1 -5 V Figure 10: A BJT Differential Amplifier Calculate the differential gain of this amplifier. If R₂ and R3 have a tolerance of ±5%, what is the worst-case common-mode gain? What is the CMRR for this amplifier in decibels? Explain how this circuit is capable of reducing the effects of a noise source present at both inputs.
