It is desired to obtain Vo(t) voltage by performing sinusoidal steady state (SSS) analysis of the circuit given in Figur

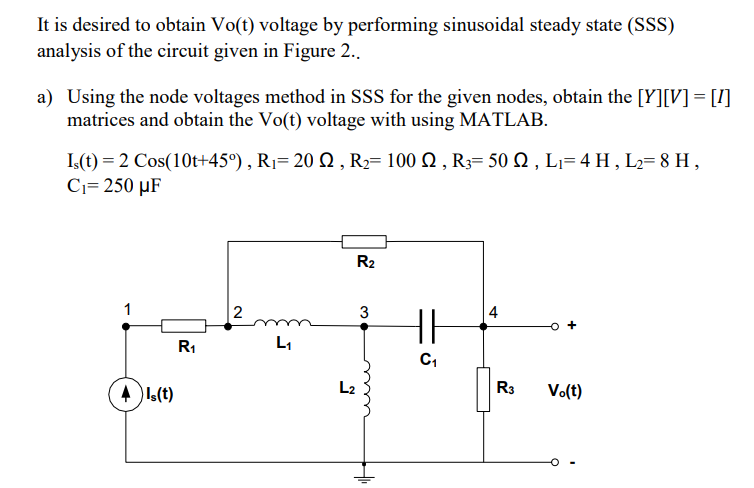

It is desired to obtain Vo(t) voltage by performing sinusoidal steady state (SSS) analysis of the circuit given in Figure 2.. a) Using the node voltages method in SSS for the given nodes, obtain the [Y][V] = [1] matrices and obtain the Vo(t) voltage with using MATLAB. Is(t) = 2 Cos(10t+45°), R₁= 20 Q2, R₂= 100 Q, R3= 50 Q2, L₁= 4 H, L₂= 8 H, C₁= 250 µF R₂ 1 2 3 4 ) Is(t) R₁ L₁ 5 L₂ C₁ R3 Vo(t)
