In a balanced three-phase wye-wye system, the source is an abc-sequence set of voltages and Van = 120/40° Vrms. If the a

Post by answerhappygod »

In A Balanced Three Phase Wye Wye System The Source Is An Abc Sequence Set Of Voltages And Van 120 40 Vrms If The A 1
In A Balanced Three Phase Wye Wye System The Source Is An Abc Sequence Set Of Voltages And Van 120 40 Vrms If The A 1 (21.99 KiB) Viewed 59 times

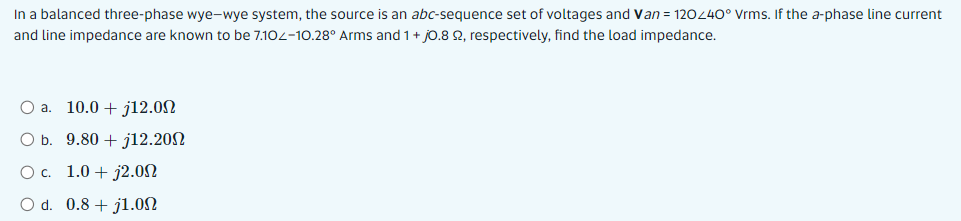

In a balanced three-phase wye-wye system, the source is an abc-sequence set of voltages and Van = 120/40° Vrms. If the a-phase line current and line impedance are known to be 7.102-10.28° Arms and 1 + j0.8 92, respectively, find the load impedance. O a. 10.0+ j12.00 O b. 9.80 +j12.200 O c. 1.0 + j2.09 O d. 0.8+j1.00
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
