Consider an op-amp circuit as shown below. C₁ ww ww ww R₁ G₁ R₂ G₂ R3 G3 Vout Vin Analyze the above op-amp circuit assum

[answerhappygod]

Consider An Op Amp Circuit As Shown Below C Ww Ww Ww R G R G R3 G3 Vout Vin Analyze The Above Op Amp Circuit Assum 1 (34.73 KiB) Viewed 51 times

1. Perfom a Fourier analysis on the output voltage to determine the first 5 Fourier series amplitudes and phases
2. Hand Calculations are preferred and Scilab can be used also if available
3. I will upvote, thank you

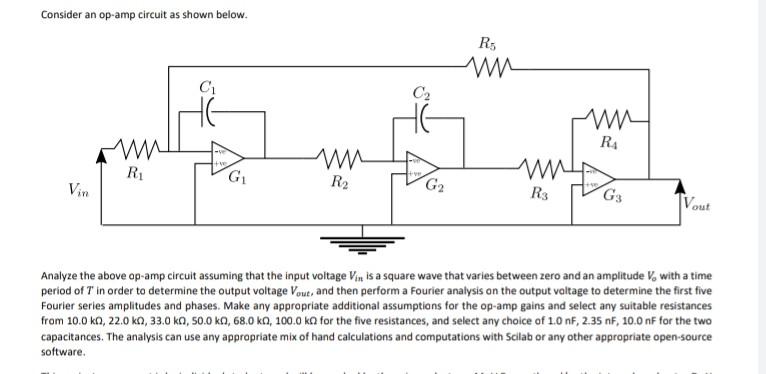

Consider an op-amp circuit as shown below. C₁ ww ww ww R₁ G₁ R₂ G₂ R3 G3 Vout Vin Analyze the above op-amp circuit assuming that the input voltage Vin, is a square wave that varies between zero and an amplitude V, with a time period of 7 in order to determine the output voltage Vout, and then perform a Fourier analysis on the output voltage to determine the first five Fourier series amplitudes and phases. Make any appropriate additional assumptions for the op-amp gains and select any suitable resistances from 10.0 kn, 22.0 kn, 33.0 kn, 50.0 kn, 68.0 kn, 100.0 k for the five resistances, and select any choice of 1.0 nF, 2.35 nF, 10.0 nF for the two capacitances. The analysis can use any appropriate mix of hand calculations and computations with Scilab or any other appropriate open-source software. C₂ R5 ww ww R₁
