Question 5. [15] A 400 V, 3-phase star connected alternator supplies a delta-connected load, each phase of which has a r

Post by answerhappygod »

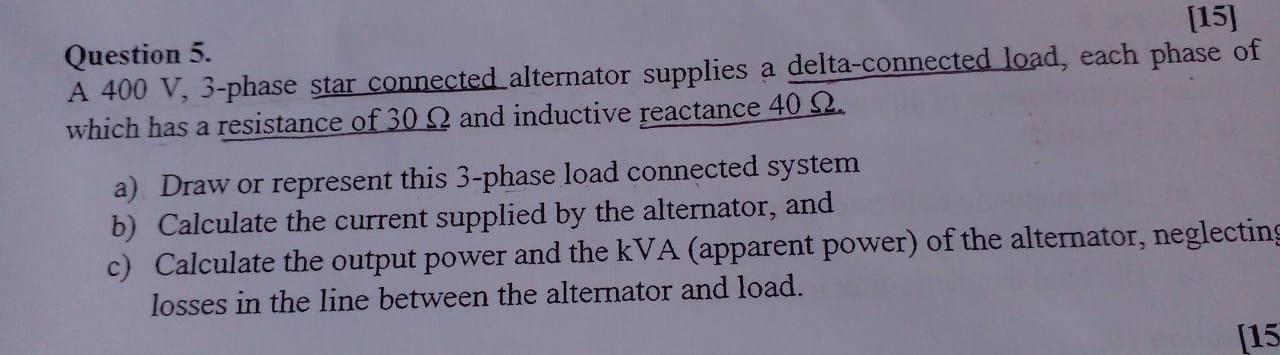

Question 5 15 A 400 V 3 Phase Star Connected Alternator Supplies A Delta Connected Load Each Phase Of Which Has A R 1
Question 5 15 A 400 V 3 Phase Star Connected Alternator Supplies A Delta Connected Load Each Phase Of Which Has A R 1 (49.23 KiB) Viewed 76 times
Question 5. [15] A 400 V, 3-phase star connected alternator supplies a delta-connected load, each phase of which has a resistance of 30 and inductive reactance 40 2. a) Draw or represent this 3-phase load connected system b) Calculate the current supplied by the alternator, and c) Calculate the output power and the kVA (apparent power) of the alternator, neglecting losses in the line between the alternator and load. [15
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
