Q1. For the single-phase half-wave controlled rectifier with a firing angle of (a = 60°) and with R-L load circuit shown
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
Q1. For the single-phase half-wave controlled rectifier with a firing angle of (a = 60°) and with R-L load circuit shown

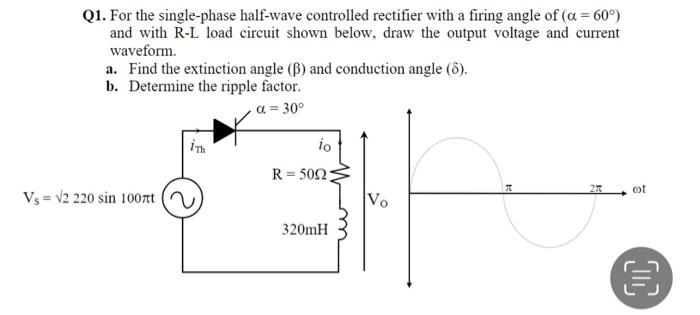

Q1. For the single-phase half-wave controlled rectifier with a firing angle of (a = 60°) and with R-L load circuit shown below, draw the output voltage and current waveform. a. Find the extinction angle (B) and conduction angle (8). b. Determine the ripple factor. a = 30° 2π ot Vs = √2 220 sin 100nt io R=5002- 320mH Vo π OC
