2. Complete following logic gates of a function X=(AB+C)'. Also, specify the width of nFETs and pFETs. Assume that width

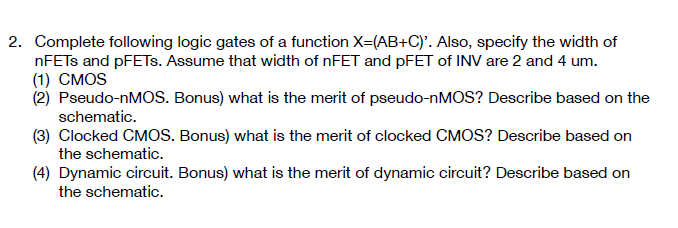

2. Complete following logic gates of a function X=(AB+C)'. Also, specify the width of nFETs and pFETs. Assume that width of nFET and pFET of INV are 2 and 4 um. (1) CMOS (2) Pseudo-nMOS. Bonus) what is the merit of pseudo-nMOS? Describe based on the schematic. (3) Clocked CMOS. Bonus) what is the merit of clocked CMOS? Describe based on the schematic. (4) Dynamic circuit. Bonus) what is the merit of dynamic circuit? Describe based on the schematic.
