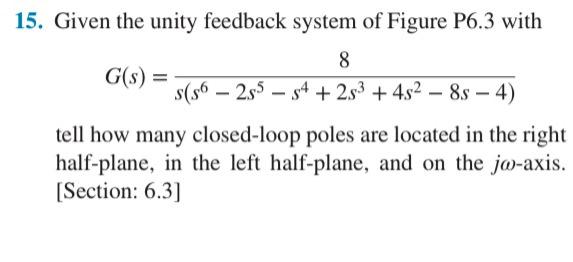

15. Given the unity feedback system of Figure P6.3 with 8 G(s) = s(s625554 +253 +4s² - 8s - 4) tell how many closed-loop poles are located in the right half-plane, in the left half-plane, and on the jo-axis. [Section: 6.3]
R(s) + E(s) G(s) FIGURE P6.3 C(s)
