3. (20 pts.) For each system function Hi(s) below for a LTI continuous-time system with input x(t) and output y(t), (1)

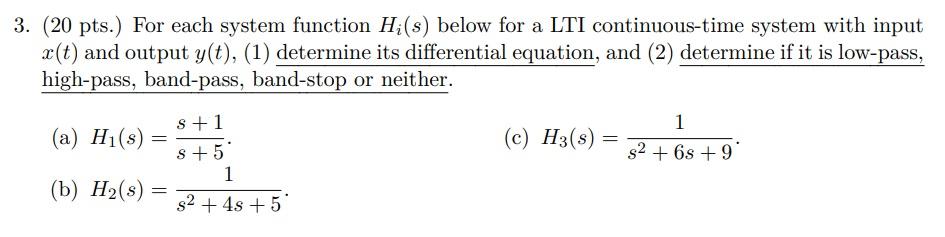

3. (20 pts.) For each system function Hi(s) below for a LTI continuous-time system with input x(t) and output y(t), (1) determine its differential equation, and (2) determine if it is low-pass, high-pass, band-pass, band-stop or neither. s+1 1 (a) H₁(s) (c) H3(s) = = s² + 6s +9 s+ 5* 1 (b) H₂(s) s² + 4s +5 = =
