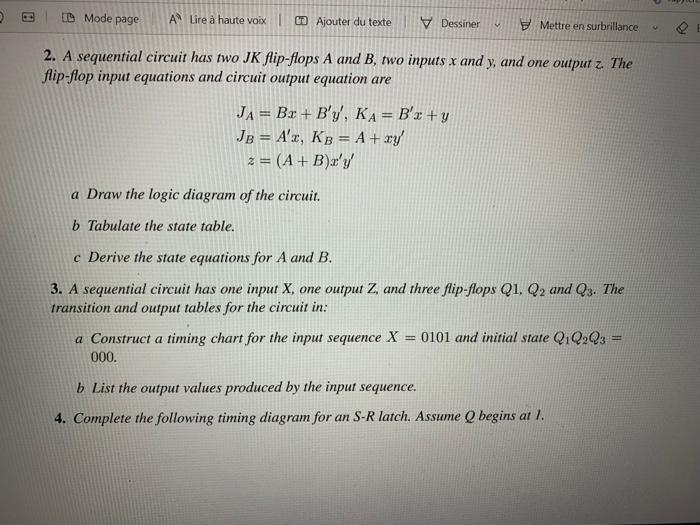

D Mode page A Lire à haute voix Ajouter du texte Dessiner ✔ Mettre en surbrillance 2. A sequential circuit has two JK flip-flops A and B, two inputs x and y, and one output z. The flip-flop input equations and circuit output equation are JA= Br+ B'y', KA = B'x+y JB = A'x, KB = A + xy z = (A + B)x'y a Draw the logic diagram of the circuit. b Tabulate the state table. c Derive the state equations for A and B. 3. A sequential circuit has one input X, one output Z, and three flip-flops Q1, Q2 and Q3. The transition and output tables for the circuit in: a Construct a timing chart for the input sequence X = 0101 and initial state Q₁Q2Q3 = 000. b List the output values produced by the input sequence. 4. Complete the following timing diagram for an S-R latch. Assume Q begins at 1. V

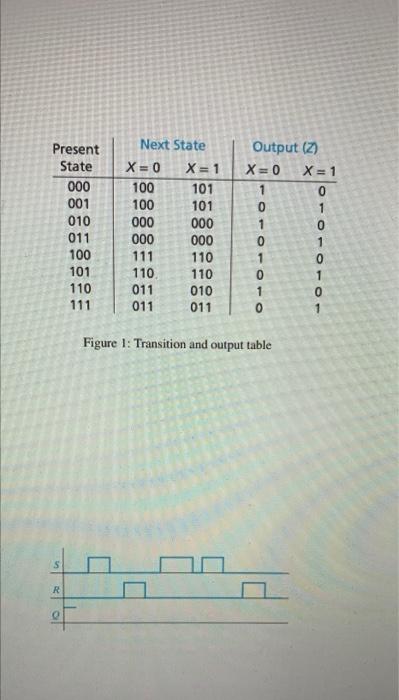

Next State R 0 Output (2) Present State X=0 X = 1 000 100 101 001 100 101 010 000 000 011 000 000 100 111 110 101 110. 110 110 011 010 111 011 011 Figure 1: Transition and output table X=0 X=1 01010001 11111010
