microcontroller using the micro-controller tab. Configure the
microcontroller through your code as follows:Start PICSimLab.
Select the board McLab2. Select PIC16F877A as microcontroller using
the micro-controller tab. Configure the microcontroller through
your code as follows:
#pragma config FOSC = XT // Oscillator Selection bits (XT
oscillator)
#pragma config WDTE = OFF // Watchdog Timer Enable bit (WDT
disabled)
#pragma config PWRTE = OFF // Power-up Timer Enable bit (PWRT
disabled)
#pragma config BOREN = OFF // Brown-out Reset Enable bit (BOR
disabled)
#pragma config LVP = OFF // Low-Voltage (Single-Supply)
In-Circuit Serial Programming Enable bit (RB3 is digital I/O, HV on
MCLR must be used for programming)
#pragma config CPD = OFF // Data EEPROM Memory Code Protection
bit (Data EEPROM code protection off)
#pragma config WRT = OFF // Flash Program Memory Write Enable
bits (Write protection off; all program memory may be written to by
EECON control)
#pragma config CP = OFF // Flash Program Memory Code Protection
bit (Code protection off)
Program the microcontroller so that the most significant 8-bit
of the analog to digital conversion is shown on 3 seven-segment
displays on the board. Validate its operation by changing the Pot
P2. The result shown on the display should change between 0(zero)
and 255 as demonstrated in Solution_Video.
- Start Picsimlab Select The Board Mclab2 Select Pic16f877a As Microcontroller Using The Micro Controller Tab Configure 1 (114.82 KiB) Viewed 65 times
programming language language (-100 pts otherwise).
Create a video which displays:

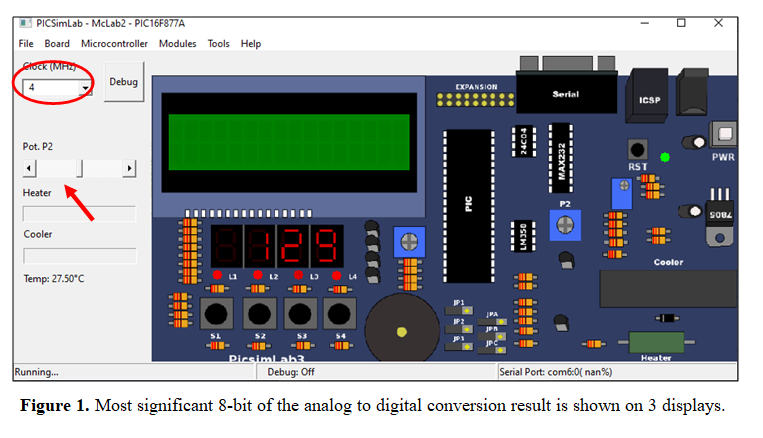

PICSimLab - McLab2 - PIC16F877A File Board Microcontroller Modules Tools Help Clock (MHz) Debug 4 Pot. P2 D ▸ Heater Cooler Temp: 27.50°C 00 329 ……… A EXPANSION PIC ‒‒‒‒ JPA 24C04 LM350 Serial MAX232 ‒‒‒‒‒‒‒‒ ICSP RST |||| II- Cooler X PWR SOUL L2 L3 -- -11- -- 52 54 SL CI- 53 -- -||| Picsiml ab3 Heater Running... Debug: Off Serial Port: com6:0( nan%) Figure 1. Most significant 8-bit of the analog to digital conversion result is shown on 3 displays.
Dear All. In Homework 4: You need to use ADCON1.ADFM = 0 so that the result will be left-justified and the result in ADRESH will give you 8-bit (0-255) analog to digital conversion result. *21-22.62.BME2220530.MICROPROCESSORS (Combined)
