The timing diagram below is for a button press synchronizer that synchronizes a button press to a clock signal. The circ

[answerhappygod]

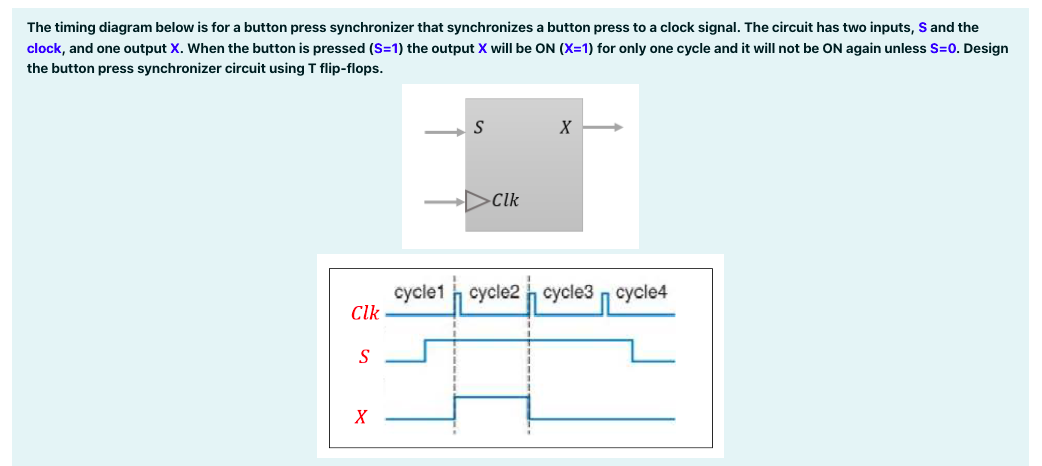

The Timing Diagram Below Is For A Button Press Synchronizer That Synchronizes A Button Press To A Clock Signal The Circ 1 (68.58 KiB) Viewed 61 times

how to do circuit Toglle FF
The timing diagram below is for a button press synchronizer that synchronizes a button press to a clock signal. The circuit has two inputs, S and the clock, and one output X. When the button is pressed (S=1) the output X will be ON (X=1) for only one cycle and it will not be ON again unless S=0. Design the button press synchronizer circuit using T flip-flops. S X Clk S X Clk cycle1 cycle2 cycle3 cycle4
