Vab Q6: In the converter shown, the inverter output voltage va is as indicated in figure where E = 240V and T = 500 µs.

Post by answerhappygod »

Vab Q6 In The Converter Shown The Inverter Output Voltage Va Is As Indicated In Figure Where E 240v And T 500 Us 1
Vab Q6 In The Converter Shown The Inverter Output Voltage Va Is As Indicated In Figure Where E 240v And T 500 Us 1 (31.45 KiB) Viewed 57 times

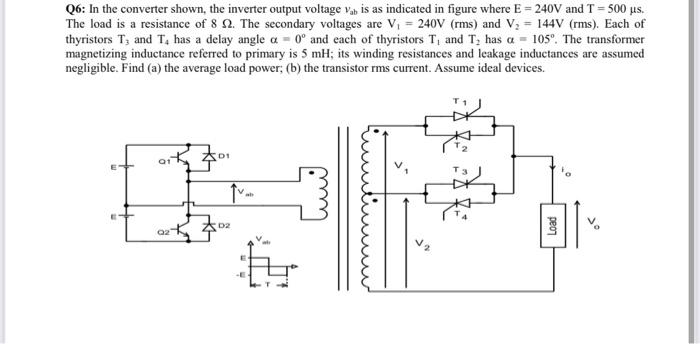

Vab Q6: In the converter shown, the inverter output voltage va is as indicated in figure where E = 240V and T = 500 µs. The load is a resistance of 8 2. The secondary voltages are V₁ = 240V (rms) and V₂ = 144V (rms). Each of thyristors T, and T, has a delay angle a = 0° and each of thyristors T₁ and T, has a 105°. The transformer magnetizing inductance referred to primary is 5 mH; its winding resistances and leakage inductances are assumed negligible. Find (a) the average load power; (b) the transistor rms current. Assume ideal devices. DI D2 Q2 Load
