Q4: In the circuit given below, the inverter works at a switching frequency of 20 kHz and its output Vab is a symmetrica

[answerhappygod]

Q4 In The Circuit Given Below The Inverter Works At A Switching Frequency Of 20 Khz And Its Output Vab Is A Symmetrica 1 (24.55 KiB) Viewed 47 times

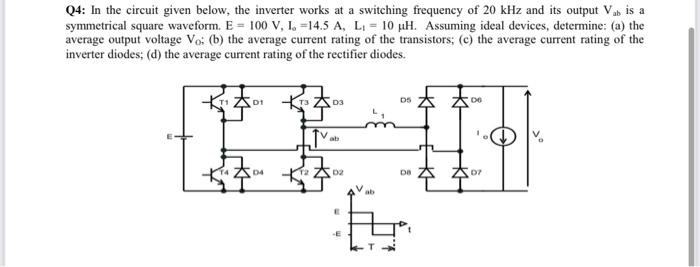

Q4: In the circuit given below, the inverter works at a switching frequency of 20 kHz and its output Vab is a symmetrical square waveform. E= 100 V, I.-14.5 A, L₁= 10 µH. Assuming ideal devices, determine: (a) the average output voltage Vo: (b) the average current rating of the transistors; (c) the average current rating of the inverter diodes; (d) the average current rating of the rectifier diodes. D5 D6 01 TS 03 ab D4 DB 07 D2 ab
