I Ii Consider The Scenario Below Where There Appears A Broken Ground What Would Be The Current Through The Heart Bod 1 (60.31 KiB) Viewed 54 times
NOTE: The maximum current allowed through the heart of the
patient is 10 µArms.

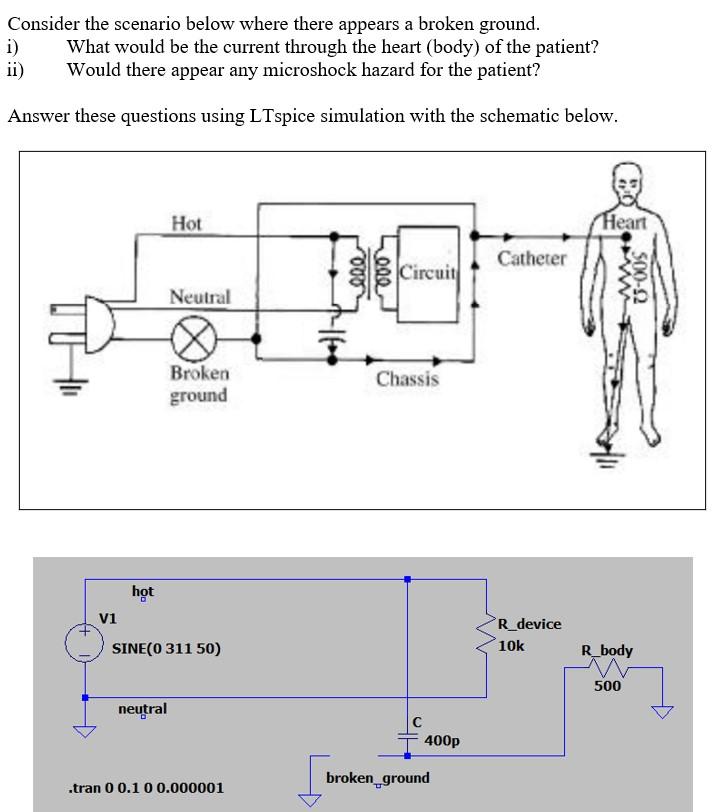

i) ii) Consider the scenario below where there appears a broken ground. What would be the current through the heart (body) of the patient? Would there appear any microshock hazard for the patient? Answer these questions using LTspice simulation with the schematic below. Hot Heart Catheter Circuit Neutral Broken ground hot SINE(0 311 50) neutral .tran 0 0.1 0 0.000001 V1 ele eee Chassis 400p broken_ground R_device 10k www 500-£2 R_body 500
