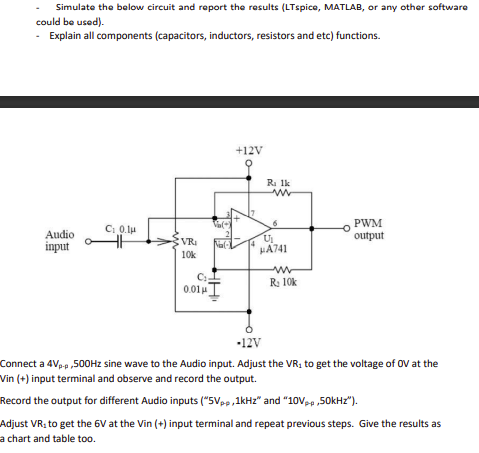

Simulate the below circuit and report the results (LTspice, MATLAB, or any other software could be used). Explain all components (capacitors, inductors, resistors and etc) functions. +12V PWM Audio C₁ 0.1μ H output VR₂ input 10k ww C₁- R: 10k 0.01 μ -12V Connect a 4Vp-p,500Hz sine wave to the Audio input. Adjust the VR₁ to get the voltage of OV at the Vin (+) input terminal and observe and record the output. Record the output for different Audio inputs ("5Vpp,1kHz" and "10Vp-p,50kHz"). Adjust VR₁ to get the 6V at the Vin (+) input terminal and repeat previous steps. Give the results as a chart and table too. Na(-) R₁ Ik ww U₁ HA741
