a) Find the voltage transfer function of the circuit given in Figure 1 in the s-definition region. b) Draw the amplitude

Post by answerhappygod »

A Find The Voltage Transfer Function Of The Circuit Given In Figure 1 In The S Definition Region B Draw The Amplitude 1
A Find The Voltage Transfer Function Of The Circuit Given In Figure 1 In The S Definition Region B Draw The Amplitude 1 (51.67 KiB) Viewed 72 times

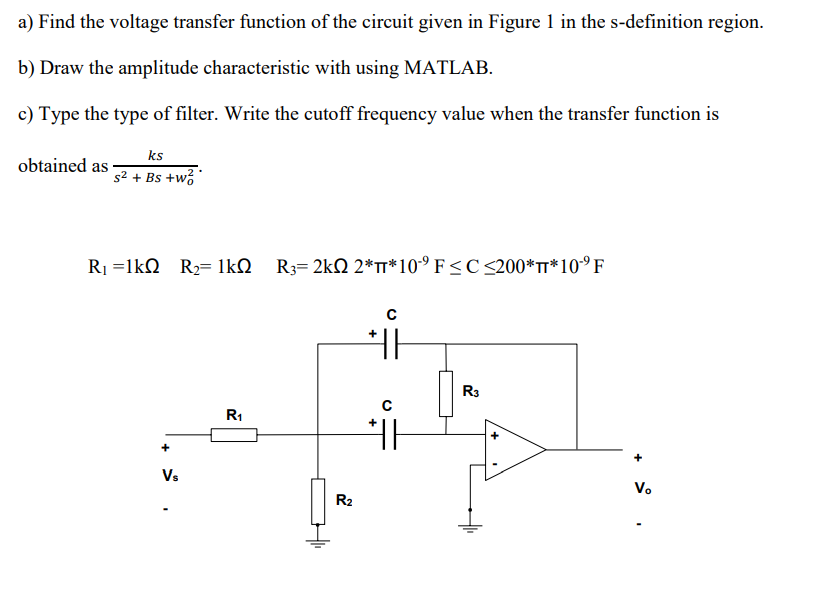

a) Find the voltage transfer function of the circuit given in Figure 1 in the s-definition region. b) Draw the amplitude characteristic with using MATLAB. c) Type the type of filter. Write the cutoff frequency value when the transfer function is ks obtained as s² + Bs +w R₁ =1kQ R₂= 1kQR3=2kQ2 2*π*10° F ≤C≤200*T*10°F C R3 R₁ Vs R₂ C Vo
