= In a regulated flyback converter with a 1 : 1 turns ratio, V. = 12 V, V is 12-24 V, Pload is 6 - 60 W, and the switchi

Post by answerhappygod »

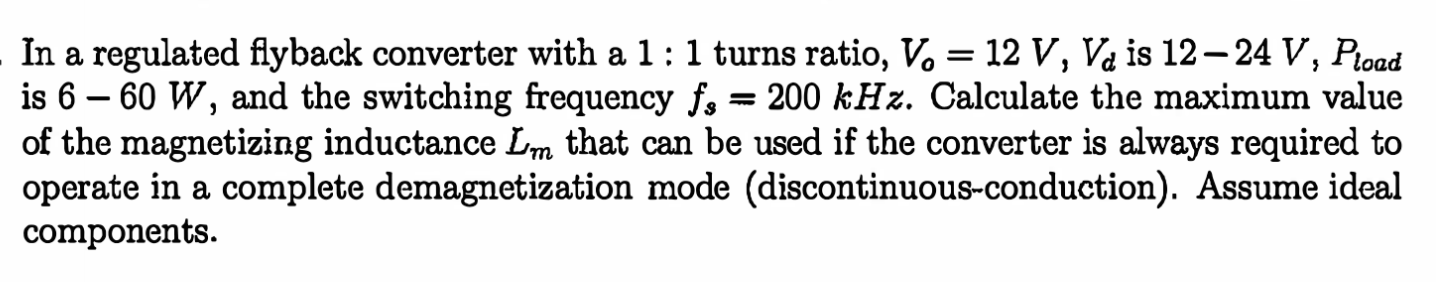

In A Regulated Flyback Converter With A 1 1 Turns Ratio V 12 V V Is 12 24 V Pload Is 6 60 W And The Switchi 1
In A Regulated Flyback Converter With A 1 1 Turns Ratio V 12 V V Is 12 24 V Pload Is 6 60 W And The Switchi 1 (133.79 KiB) Viewed 59 times
= In a regulated flyback converter with a 1 : 1 turns ratio, V. = 12 V, V is 12-24 V, Pload is 6 - 60 W, and the switching frequency f 200 kHz. Calculate the maximum value of the magnetizing inductance Lm that can be used if the converter is always required to operate in a complete demagnetization mode (discontinuous-conduction). Assume ideal components.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
