For the underdamped circuit shown in Fig. P7.110, determine the voltage v(t) if the initial conditions on the storage el

[answerhappygod]

For The Underdamped Circuit Shown In Fig P7 110 Determine The Voltage V T If The Initial Conditions On The Storage El 1 (32.66 KiB) Viewed 52 times

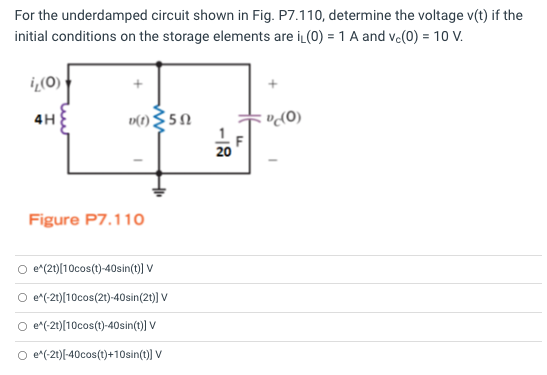

For the underdamped circuit shown in Fig. P7.110, determine the voltage v(t) if the initial conditions on the storage elements are iL(0) = 1 A and vc(0) = 10 V. i(0) 4H D(1) 355 D(0) Figure P7.110 e^(21)[10cos(t)-40sin(t)] V e^(-2t)[10cos(21)-40sin(2t)) V e^(-21)[10cos(t)-40sin(t)) V O e^(-2t)[-40cos(t)+10sin(t)] V 20
