Q2. (50p) Consider the MOSFET amplifier circuit given below. The MOSFET parameters are given as K₂=0.5mA/V²,V=-2V, K = 2

[answerhappygod]

Q2 50p Consider The Mosfet Amplifier Circuit Given Below The Mosfet Parameters Are Given As K 0 5ma V V 2v K 2 1 (35.67 KiB) Viewed 48 times

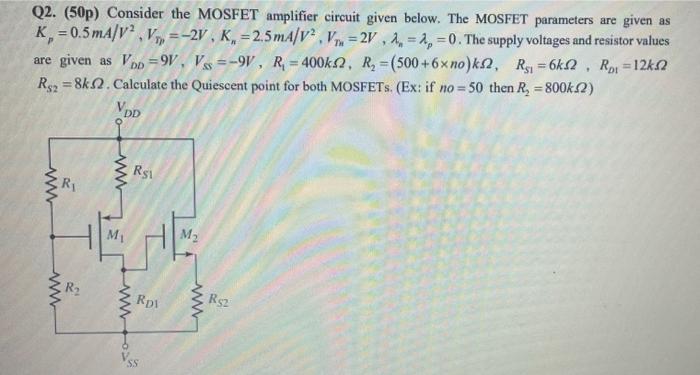

Q2. (50p) Consider the MOSFET amplifier circuit given below. The MOSFET parameters are given as K₂=0.5mA/V²,V=-2V, K = 2.5mA/V².V-2V, A = A=0. The supply voltages and resistor values are given as VDD=9V, Vs=-9V, R₁ = 400ks2, R₂ = (500+6xno) k2, R₁ = 6k2, Rot=12k2 R$2=8k2. Calculate the Quiescent point for both MOSFETs. (Ex: if no=50 then R₂ =800k.2) VDD www www R₁ R₂ www M₁ R$1 Rpl SS M₂ www R$2
