c) Figure Q3.c) below shows the equivalent circuit of a practical transformer. Describe the steps needed in order to red

[answerhappygod]

C Figure Q3 C Below Shows The Equivalent Circuit Of A Practical Transformer Describe The Steps Needed In Order To Red 1 (85.43 KiB) Viewed 38 times

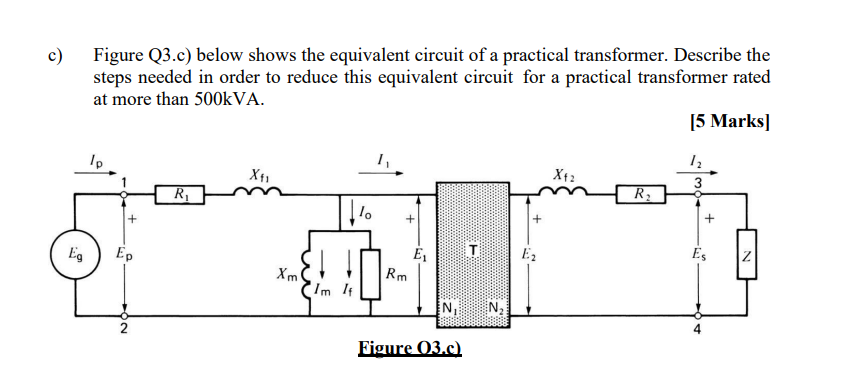

c) Figure Q3.c) below shows the equivalent circuit of a practical transformer. Describe the steps needed in order to reduce this equivalent circuit for a practical transformer rated at more than 500kVA. [5 Marks] Xf₂ Xf1 R₂ R₁ lo T E₂ Eg Ep Xm Im If E₁ Rm Figure 03.c) N₁ N₂ ==== 12 3 + Es N
