The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If i₁(0) = 0, what is i(t = 6 s)? Give
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If i₁(0) = 0, what is i(t = 6 s)? Give

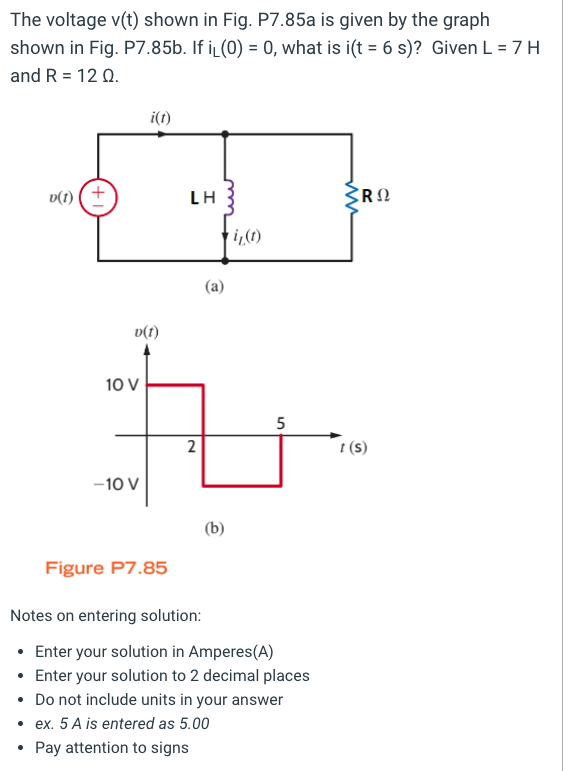

The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If i₁(0) = 0, what is i(t = 6 s)? Given L = 7 H and R = 120. i(t) v(1) (+ v(t) LH 2 ܚܚܚܚܪ (a) 10 V -10 V Figure P7.85 Notes on entering solution: • Enter your solution in Amperes(A) • Enter your solution to 2 decimal places • Do not include units in your answer • ex. 5 A is entered as 5.00 . Pay attention to signs (b) i(t) 5 ww RΩ t (s)
