The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If iL (0) = 0, how much power is suppl

[answerhappygod]

The Voltage V T Shown In Fig P7 85a Is Given By The Graph Shown In Fig P7 85b If Il 0 0 How Much Power Is Suppl 1 (52.25 KiB) Viewed 38 times

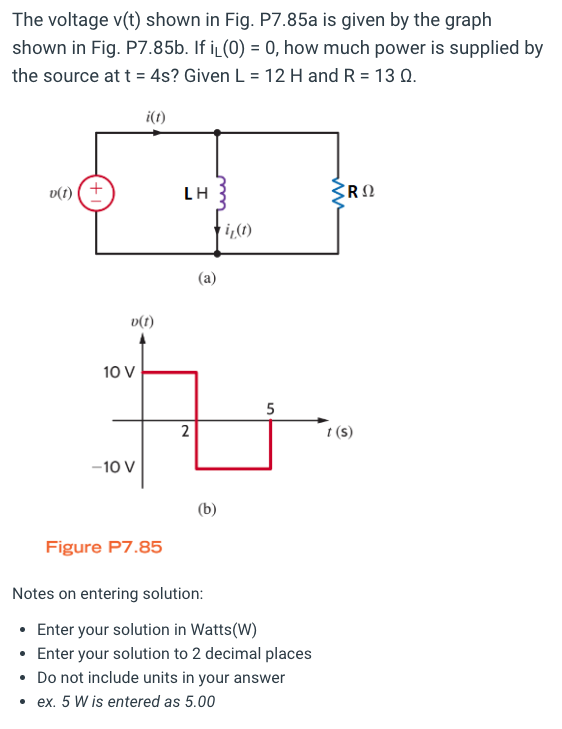

The voltage v(t) shown in Fig. P7.85a is given by the graph shown in Fig. P7.85b. If iL (0) = 0, how much power is supplied by the source at t = 4s? Given L = 12 H and R = 13 0. i(t) v(1) (+ v(1) LH i₁(1) 10 V -10 V (b) Figure P7.85 Notes on entering solution: • Enter your solution in Watts (W) • Enter your solution to 2 decimal places • Do not include units in your answer • ex. 5 W is entered as 5.00 2 5 ww RΩ t (s)
