Given R1=9 0, R2=1 Q, R3 = 16 0, and L = 1 H, for the circuit shown in the figure shown below, determine the output curr

[answerhappygod]

Given R1 9 0 R2 1 Q R3 16 0 And L 1 H For The Circuit Shown In The Figure Shown Below Determine The Output Curr 1 (66.01 KiB) Viewed 73 times

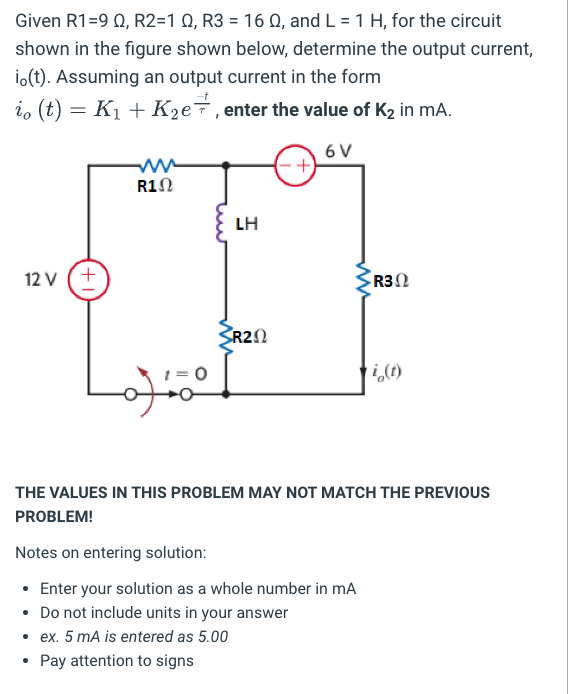

Given R1=9 0, R2=1 Q, R3 = 16 0, and L = 1 H, for the circuit shown in the figure shown below, determine the output current, io(t). Assuming an output current in the form i。 (t) = K₁ + K₂e7, enter the value of K₂ in mA. 6V + R1Ω 12 V (+ R3Ω 0 i(t) THE VALUES IN THIS PROBLEM MAY NOT MATCH THE PREVIOUS PROBLEM! Notes on entering solution: • Enter your solution as a whole number in mA • Do not include units in your answer • ex. 5 mA is entered as 5.00 • Pay attention to signs www LH SR20
