Given R1=4 Q, R2=20 0, R3 = 50, and L = 1 H, for the circuit shown in the figure shown below, determine the output curre

[answerhappygod]

Given R1 4 Q R2 20 0 R3 50 And L 1 H For The Circuit Shown In The Figure Shown Below Determine The Output Curre 1 (65.39 KiB) Viewed 51 times

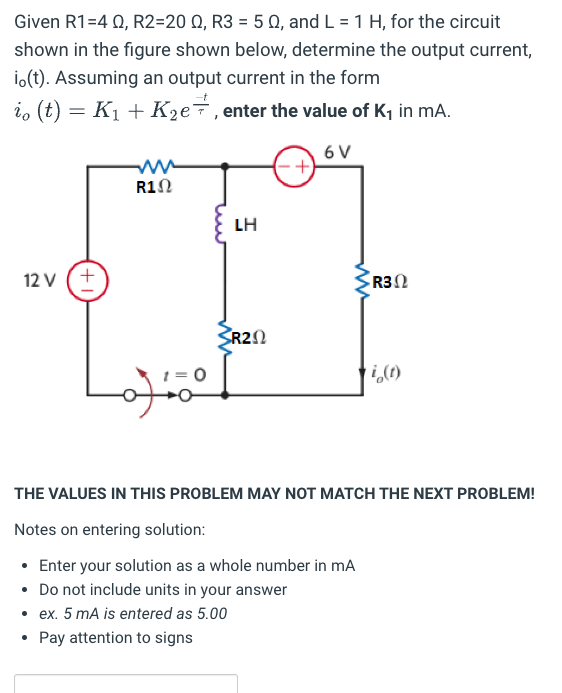

Given R1=4 Q, R2=20 0, R3 = 50, and L = 1 H, for the circuit shown in the figure shown below, determine the output current, io(t). Assuming an output current in the form io (t) = K₁ + K₂e7, enter the value of K₁ in mA. 6V + R1Ω LH 12 V (+ R20 0 i(t) THE VALUES IN THIS PROBLEM MAY NOT MATCH THE NEXT PROBLEM! Notes on entering solution: • Enter your solution as a whole number in mA • Do not include units in your answer • ex. 5 mA is entered as 5.00 Pay attention to signs ww R30
