4) For the circuit below, all op-amps are ideal. You can assume that the voltage buffers act like ideal voltage sources.

[answerhappygod]

4 For The Circuit Below All Op Amps Are Ideal You Can Assume That The Voltage Buffers Act Like Ideal Voltage Sources 1 (125.49 KiB) Viewed 41 times

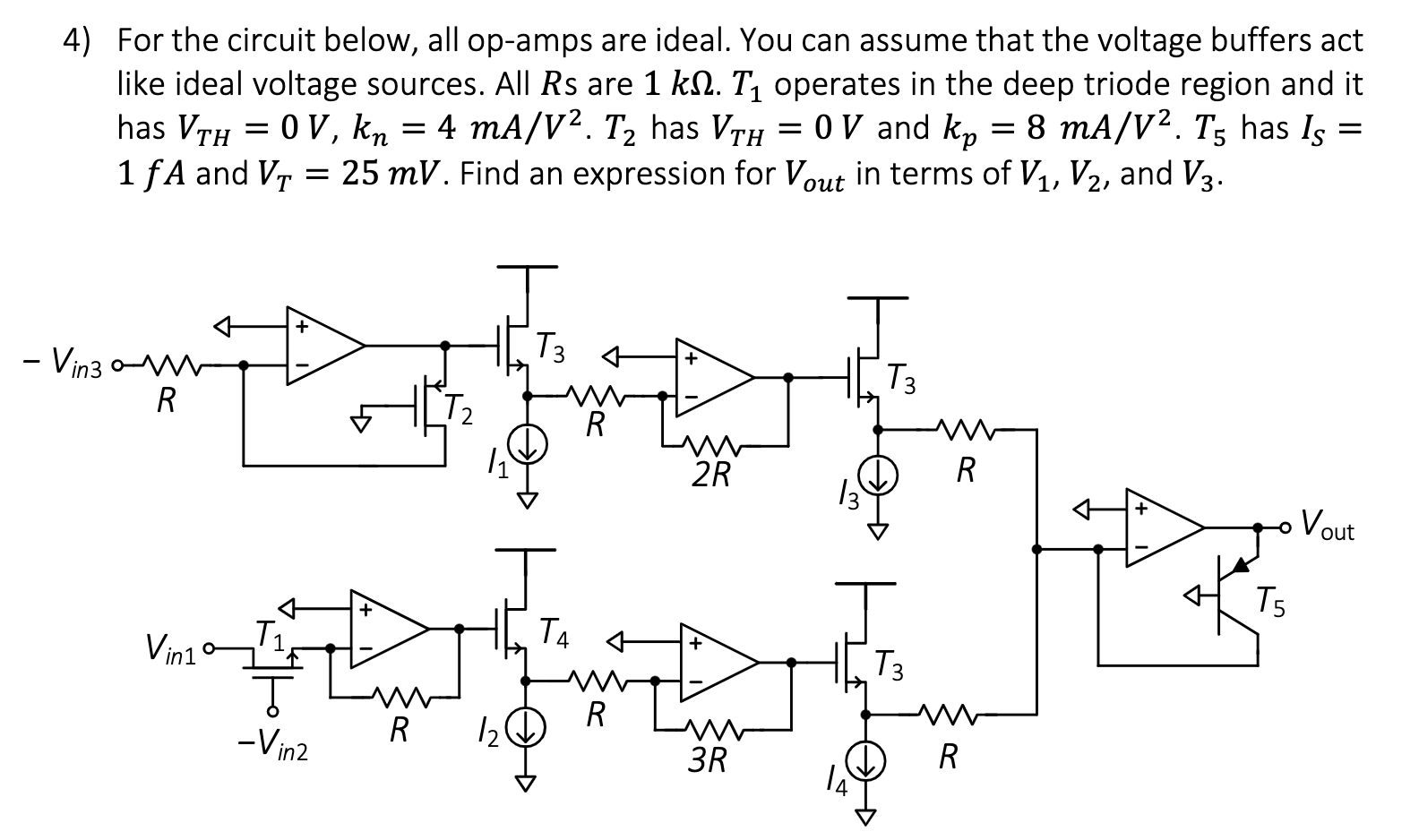

4) For the circuit below, all op-amps are ideal. You can assume that the voltage buffers act like ideal voltage sources. All Rs are 1 k. Т₁ operates in the deep triode region and it has VTH = 0 V, kn = 4 mA/V². T₂ has VTH = 0V and kp = 8 mA/V². T5 has Is = 1 fA and VT = 25 mV. Find an expression for Vout in terms of V₁, V₂, and V3. J T3 - Vin3 Prem T3 R R 2R R 13 Vout T4 + no!! T3 3R Vin1 Vinz R 12 ↓↓ R TÀ R T5
