1. For each of the root loci shown in Figure P8.1, tell whether or not the sketch can be a root locus. If the sketch can

[answerhappygod]

1 For Each Of The Root Loci Shown In Figure P8 1 Tell Whether Or Not The Sketch Can Be A Root Locus If The Sketch Can 1 (40.63 KiB) Viewed 58 times

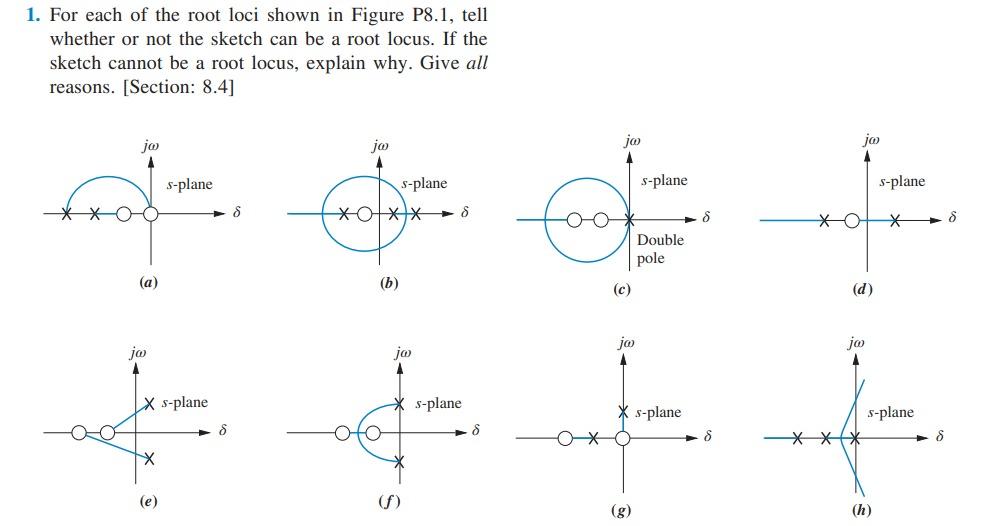

1. For each of the root loci shown in Figure P8.1, tell whether or not the sketch can be a root locus. If the sketch cannot be a root locus, explain why. Give all reasons. [Section: 8.4] ja ja A s-plane s-plane XOXX 6 (b) (a) jw X s-plane X (e) - 8 8 ja (f) s-plane -8 jo (c) s-plane Double pole Ja A Xs-plane (g) 8 ja A XOX (d) joo *** s-plane s-plane (h) 8 8
