- 2 30 P Calculate The Vot And Voz Voltage Values And Plot The Voltage Waveforms V2 T Vor T And Vo2 T R 20 1 (19.81 KiB) Viewed 51 times
2. (30 p) Calculate the Vot and Voz voltage values and plot the voltage waveforms: (V2-t), (Vor-t) and (Vo2-t). R₁ = 20
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
2. (30 p) Calculate the Vot and Voz voltage values and plot the voltage waveforms: (V2-t), (Vor-t) and (Vo2-t). R₁ = 20

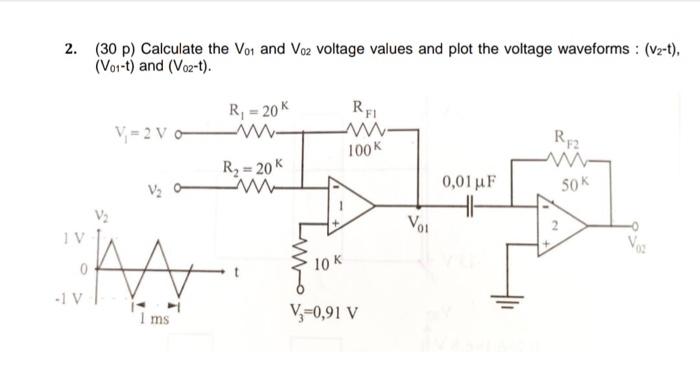

2. (30 p) Calculate the Vot and Voz voltage values and plot the voltage waveforms: (V2-t), (Vor-t) and (Vo2-t). R₁ = 20 K REI V-2 Vo www. www 100 K R₂= 20K RF2 www 50 K 0,01 μF W 1 ms IV -1 V 10 K V₂=0,91 V Vol
