(a) Construct the Bode plot for the phase of the following transfer function. H(o)= 100(jø+1) (jo) (jø+10)

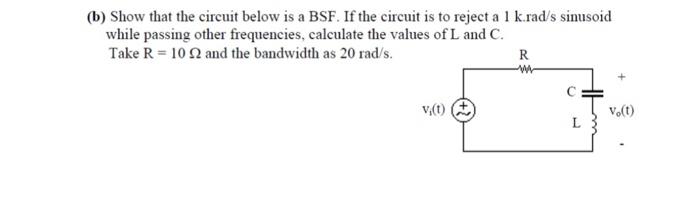

(b) Show that the circuit below is a BSF. If the circuit is to reject a 1 k.rad/s sinusoid while passing other frequencies, calculate the values of L and C. Take R = 102 and the bandwidth as 20 rad/s. R ww C V(1) L Vo(t)
