Question 3 20 Marks The Temperature In C In The Water Heating Process Is Given By The Transfer Function T S 3 U 1 (33.39 KiB) Viewed 42 times
Hi, Kindly have to answer above all question and write clearly
can be read & see.
Thank you

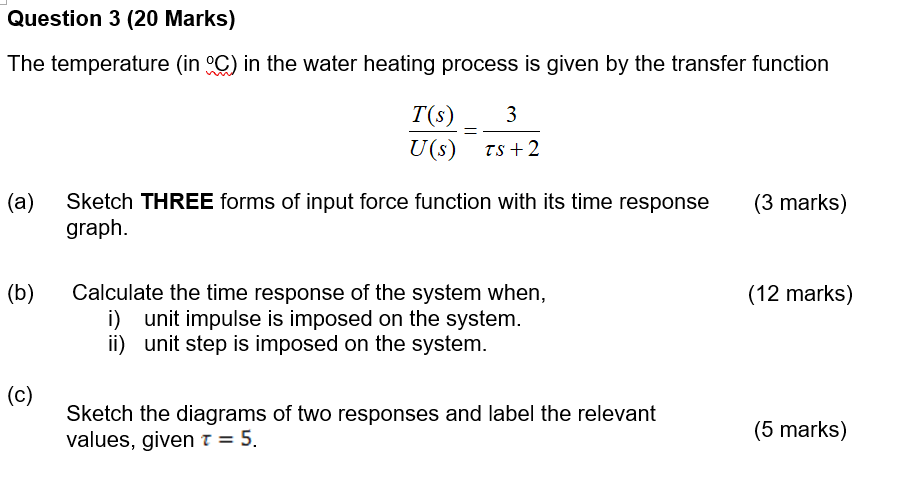

Question 3 (20 Marks) The temperature (in °C) in the water heating process is given by the transfer function T(s) 3 = U (s) TS +2 (3 marks) (a) Sketch THREE forms of input force function with its time response graph. (b) Calculate the time response of the system when, (12 marks) i) unit impulse is imposed on the system. ii) unit step is imposed on the system. (c) Sketch the diagrams of two responses and label the relevant values, given T = 5. (5 marks)
