an 741E op amp is configured as a noninverting amplifier, as shown in the figure below. If the ac input amplitude is Vim

Post by answerhappygod »

An 741e Op Amp Is Configured As A Noninverting Amplifier As Shown In The Figure Below If The Ac Input Amplitude Is Vim 1
An 741e Op Amp Is Configured As A Noninverting Amplifier As Shown In The Figure Below If The Ac Input Amplitude Is Vim 1 (15.6 KiB) Viewed 34 times

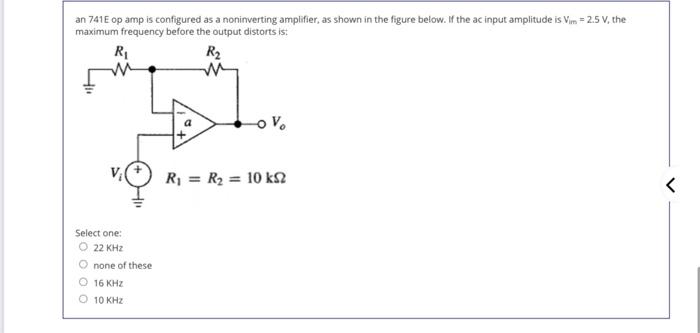

an 741E op amp is configured as a noninverting amplifier, as shown in the figure below. If the ac input amplitude is Vim = 2.5 V, the maximum frequency before the output distorts is: R₁ R₂ Vo R₁ R₂ = 10 ks2 < Select one: O 22 KHZ O none of these O 16 KHZ O 10 KHz
