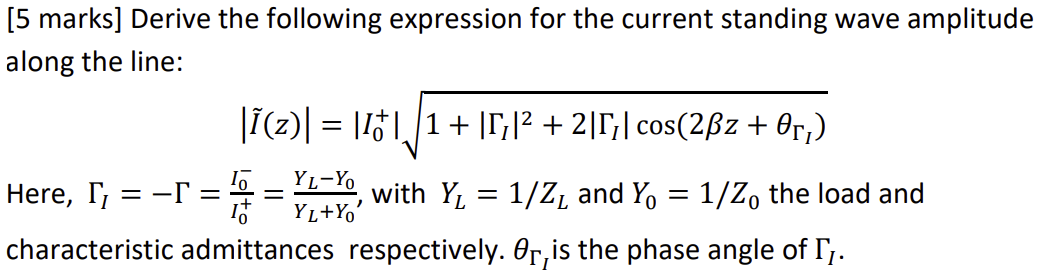

[5 marks] Derive the following expression for the current standing wave amplitude along the line: |Ĩ(z)| = |I5| |1 + |T₁
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
[5 marks] Derive the following expression for the current standing wave amplitude along the line: |Ĩ(z)| = |I5| |1 + |T₁
[5 marks] Derive the following expression for the current standing wave amplitude along the line: |Ĩ(z)| = |I5| |1 + |T₁|² + 2|r₁| cos(2ßz + 0₁₁) YL-Yo Here, I =-= = with Y₁ = 1/Z₁ and Yo = 1/Zo the load and " It YL+Yo characteristic admittances respectively. Or is the phase angle of ₁.
