A ferromagnetic core is shown in Figure P1-2. The depth of the core is 5 cm. The other dimensions of the core are as sho

Post by answerhappygod »

A Ferromagnetic Core Is Shown In Figure P1 2 The Depth Of The Core Is 5 Cm The Other Dimensions Of The Core Are As Sho 1
A Ferromagnetic Core Is Shown In Figure P1 2 The Depth Of The Core Is 5 Cm The Other Dimensions Of The Core Are As Sho 1 (297.44 KiB) Viewed 48 times

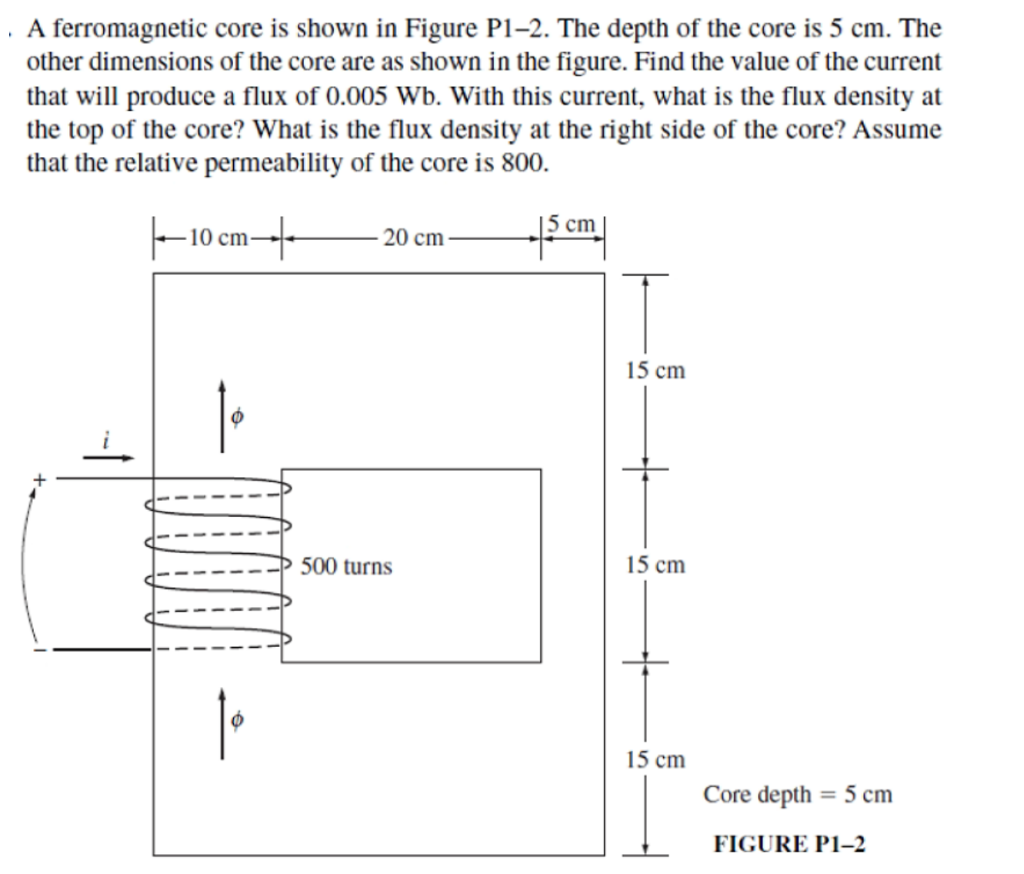

A ferromagnetic core is shown in Figure P1-2. The depth of the core is 5 cm. The other dimensions of the core are as shown in the figure. Find the value of the current that will produce a flux of 0.005 Wb. With this current, what is the flux density at the top of the core? What is the flux density at the right side of the core? Assume that the relative permeability of the core is 800. 15 cm 10 cm 20 cm- 10 500 turns 15 cm 15 cm 15 cm Core depth FIGURE P1-2 = 5 cm
