b) A PT100 RTD temperature sensor has a span of 10°C to 200°C. A measurement results in a value of 90°C for the temperat

Post by answerhappygod »

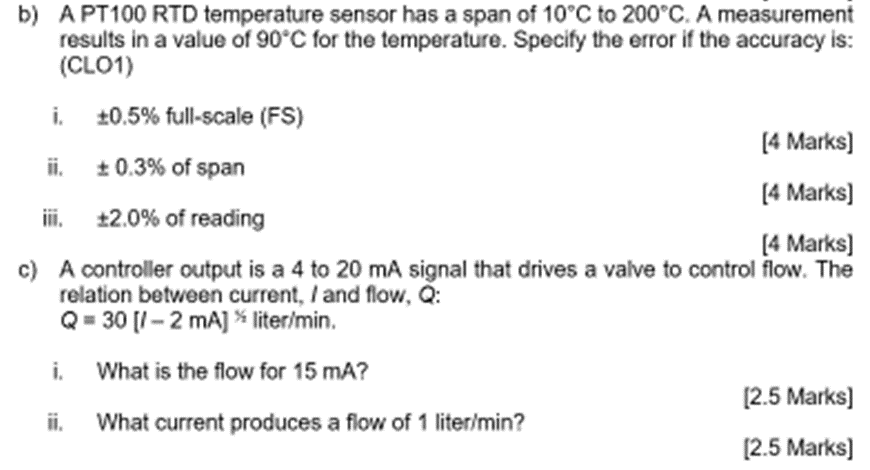

B A Pt100 Rtd Temperature Sensor Has A Span Of 10 C To 200 C A Measurement Results In A Value Of 90 C For The Temperat 1
B A Pt100 Rtd Temperature Sensor Has A Span Of 10 C To 200 C A Measurement Results In A Value Of 90 C For The Temperat 1 (63.29 KiB) Viewed 33 times
b) A PT100 RTD temperature sensor has a span of 10°C to 200°C. A measurement results in a value of 90°C for the temperature. Specify the error if the accuracy is: (CLO1) i. +0.5% full-scale (FS) ± 0.3% of span [4 Marks] [4 Marks] +2.0% of reading [4 Marks] c) A controller output is a 4 to 20 mA signal that drives a valve to control flow. The relation between current, I and flow, Q: Q=30 [1-2 mA] liter/min. i. What is the flow for 15 mA? [2.5 Marks] ii. What current produces a flow of 1 liter/min? [2.5 Marks]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
