2.13 circuit. Use circuit below instead. Compute the simplified Boolean expression at the output of the circuit by compu

Post by answerhappygod »

2 13 Circuit Use Circuit Below Instead Compute The Simplified Boolean Expression At The Output Of The Circuit By Compu 1
2 13 Circuit Use Circuit Below Instead Compute The Simplified Boolean Expression At The Output Of The Circuit By Compu 1 (26.84 KiB) Viewed 24 times

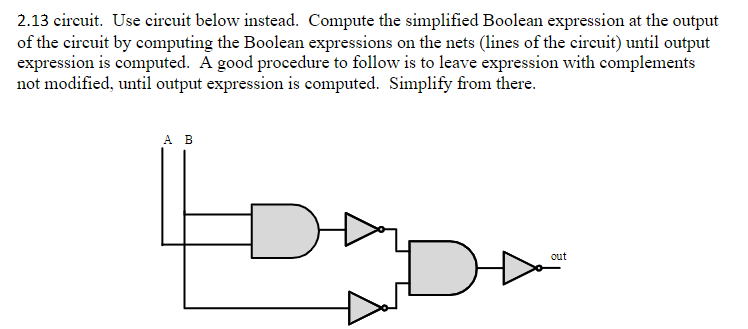

2.13 circuit. Use circuit below instead. Compute the simplified Boolean expression at the output of the circuit by computing the Boolean expressions on the nets (lines of the circuit) until output expression is computed. A good procedure to follow is to leave expression with complements not modified, until output expression is computed. Simplify from there. AB out
