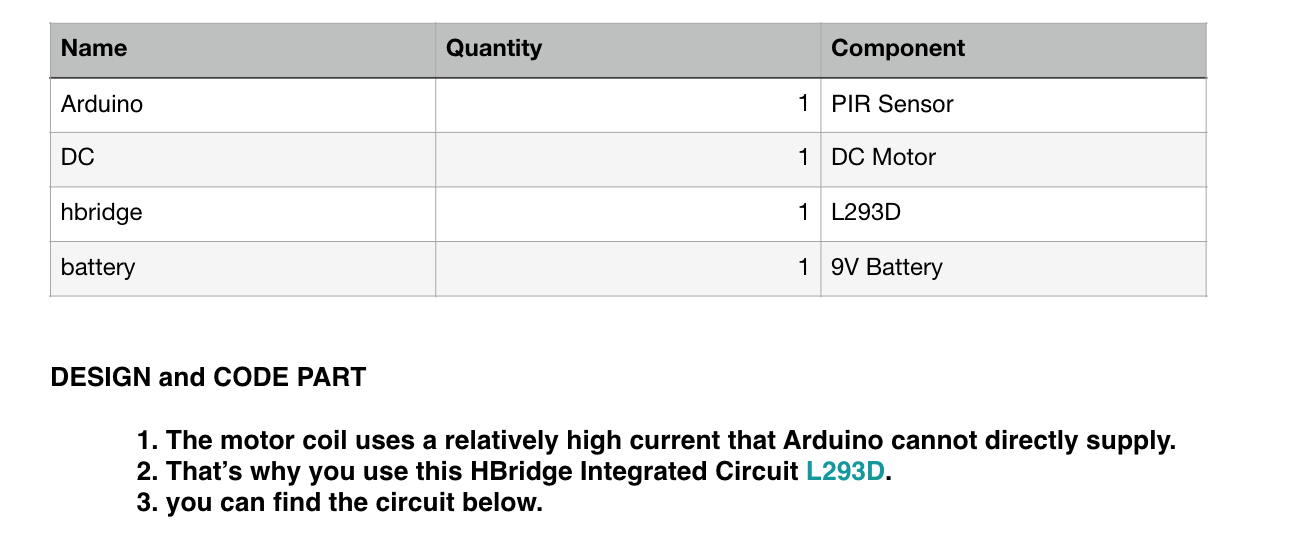

Name Quantity Component Arduino 1 Pir Sensor Dc 1 Dc Motor Hbridge 1 L293d Battery 1 9v Battery Design And Code Part 1 1 (53.79 KiB) Viewed 34 times
The homework must have to be done in https://www.tinkercad.com/
with C++ code
Name Quantity Component Arduino 1 PIR Sensor DC 1 DC Motor hbridge 1 L293D battery 1 9V Battery DESIGN and CODE PART 1. The motor coil uses a relatively high current that Arduino cannot directly supply. 2. That's why you use this HBridge Integrated Circuit L293D. 3. you can find the circuit below.
