2. Given the combinational logic diagram below, with inputs x, y, and z and output F(x,y,z): X Z D a) Write the truth ta

[answerhappygod]

2 Given The Combinational Logic Diagram Below With Inputs X Y And Z And Output F X Y Z X Z D A Write The Truth Ta 1 (82.89 KiB) Viewed 43 times

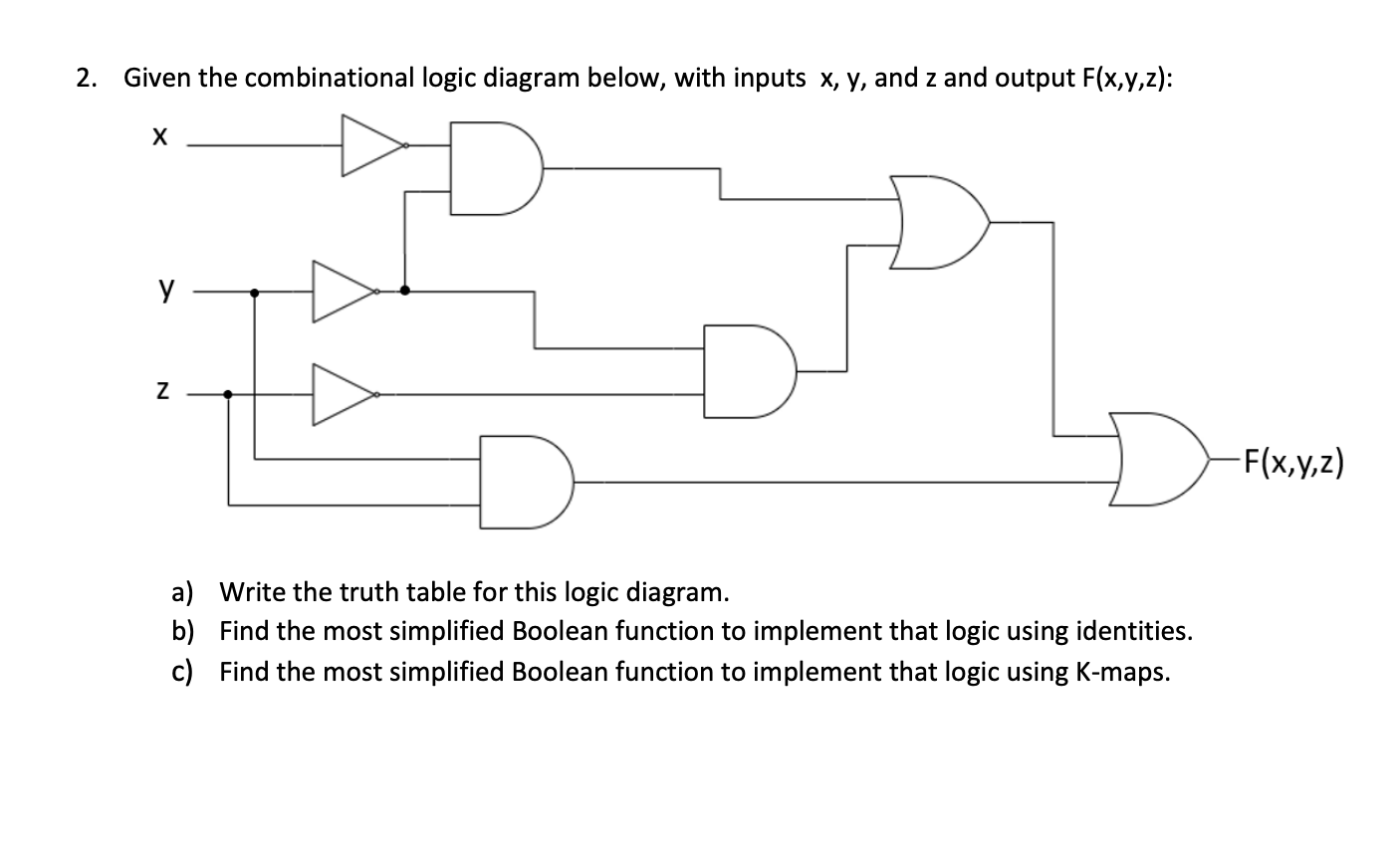

2. Given the combinational logic diagram below, with inputs x, y, and z and output F(x,y,z): X Z D a) Write the truth table for this logic diagram. b) Find the most simplified Boolean function to implement that logic using identities. c) Find the most simplified Boolean function to implement that logic using K-maps. у -F(x,y,z)
