1. Identify which mode and which timer are selected for each of the following. (a) MOV TMOD, #01H (b) MOV TMOD, #20H (c)

[answerhappygod]

1 Identify Which Mode And Which Timer Are Selected For Each Of The Following A Mov Tmod 01h B Mov Tmod 20h C 1 (49.11 KiB) Viewed 63 times

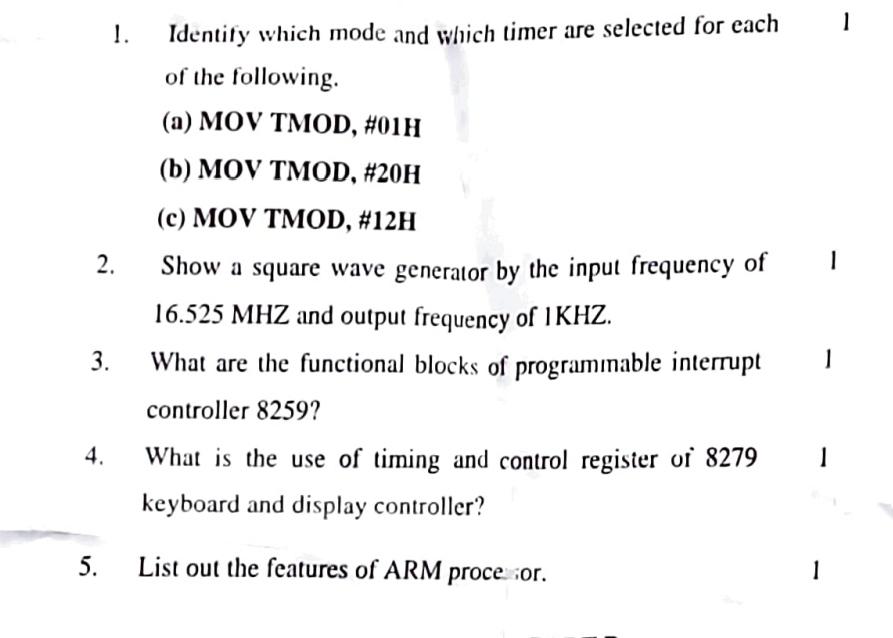

1. Identify which mode and which timer are selected for each of the following. (a) MOV TMOD, #01H (b) MOV TMOD, #20H (c) MOV TMOD, #12H 2. Show a square wave generator by the input frequency of 16.525 MHZ and output frequency of 1KHZ. 3. What are the functional blocks of programmable interrupt controller 8259? 4. What is the use of timing and control register of 8279 keyboard and display controller? List out the features of ARM procesor. 5. 1 1 1 1 1
