Shte fütting Question 1 (2 marks, 0.5 marks for each correct action) A) Express the Boolean Function F-XY+XZ as the sum

[answerhappygod]

Shte Futting Question 1 2 Marks 0 5 Marks For Each Correct Action A Express The Boolean Function F Xy Xz As The Sum 1 (34.26 KiB) Viewed 41 times

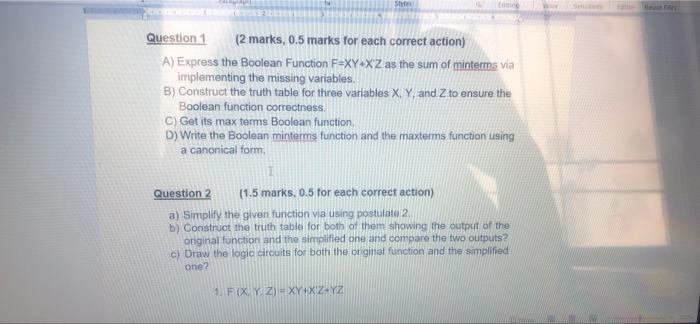

Shte fütting Question 1 (2 marks, 0.5 marks for each correct action) A) Express the Boolean Function F-XY+XZ as the sum of minterms via implementing the missing variables. B) Construct the truth table for three variables X, Y, and Z to ensure the Boolean function correctness. C) Get its max terms Boolean function. D) Write the Boolean minterms function and the maxterms function using a canonical form, Question 2 (1.5 marks, 0.5 for each correct action) a) Simplify the given function via using postulate 2. b) Construct the truth table for both of them showing the output of the original function and the simplified one and compare the two outputs? c) Draw the logic circuits for both the original function and the simplified one? 1. F(XYZ) = XY+X¹Z+YZ N War
