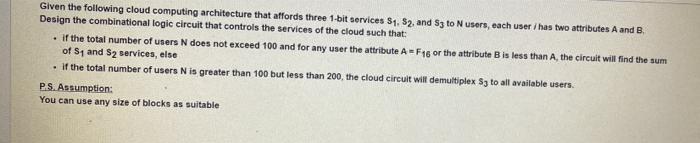

Given the following cloud computing architecture that affords three 1-bit services S₁, S2, and S3 to N users, each user / has two attributes A and B. Design the combinational logic circuit that controls the services of the cloud such that: . if the total number of users N does not exceed 100 and for any user the attribute A-F16 or the attribute B is less than A, the circuit will find the sum of S1 and 52 services, else if the total number of users N is greater than 100 but less than 200, the cloud circuit will demultiplex S3 to all available users. P.S. Assumption: You can use any size of blocks as suitable

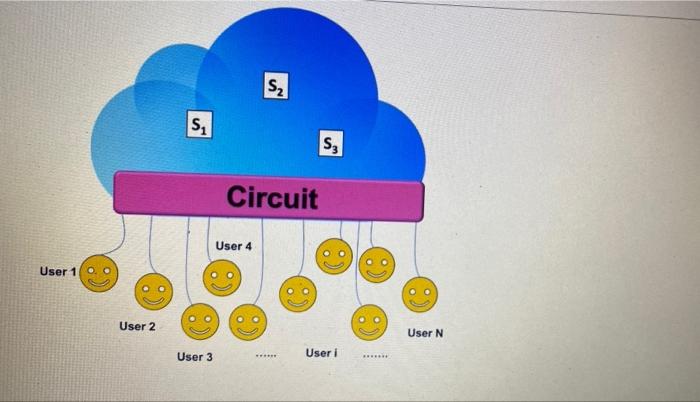

User 1 User 2 S₁ User 3 $₂ Circuit User 4 ****** S3 User i ******** User N
