Question 3: Calculations of fluxes and solute rejection for reverse osmosis of salty water - A reverse osmosis module is

[answerhappygod]

Question 3 Calculations Of Fluxes And Solute Rejection For Reverse Osmosis Of Salty Water A Reverse Osmosis Module Is 1 (132.28 KiB) Viewed 28 times

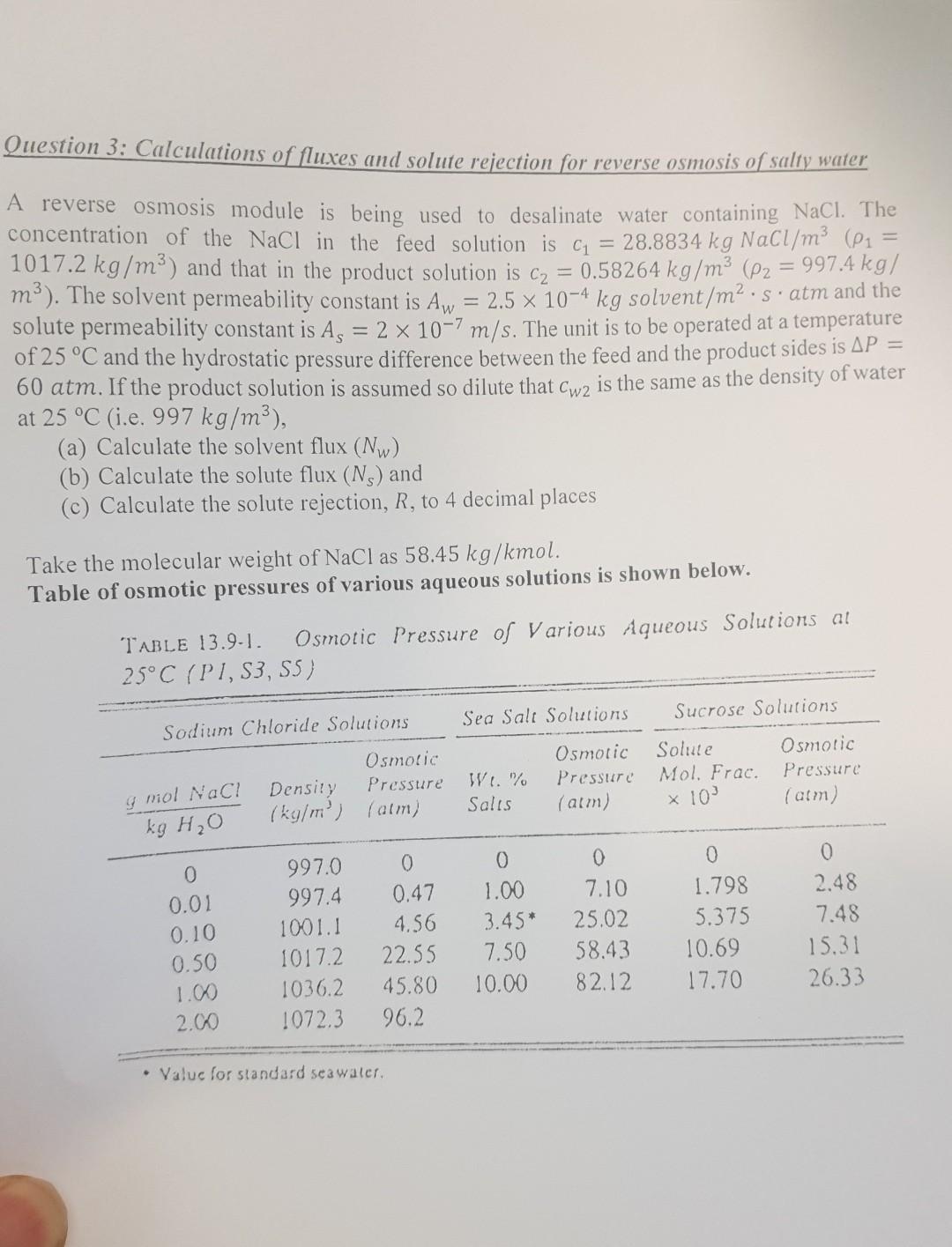

Question 3: Calculations of fluxes and solute rejection for reverse osmosis of salty water - A reverse osmosis module is being used to desalinate water containing NaCl. The concentration of the NaCl in the feed solution is C₁ = 28.8834 kg NaCl/m³ (P₁ = 1017.2 kg/m³) and that in the product solution is Cz 0.58264 kg/m³ (P2 = 997.4 kg/ m³). The solvent permeability constant is Aw 2.5 x 10-4 kg solvent/m² s atm and the solute permeability constant is A, = 2 x 10-7 m/s. The unit is to be operated at a temperature of 25 °C and the hydrostatic pressure difference between the feed and the product sides is AP = 60 atm. If the product solution is assumed so dilute that Cw2 is the same as the density of water at 25 °C (i.e. 997 kg/m³), = (a) Calculate the solvent flux (Nw) (b) Calculate the solute flux (Ns) and (c) Calculate the solute rejection, R, to 4 decimal places Take the molecular weight of NaCl as 58.45 kg/kmol. Table of osmotic pressures of various aqueous solutions is shown below. TABLE 13.9-1. Osmotic Pressure of Various Aqueous Solutions at 25°C (P1, S3, SS) Sea Salt Solutions Sucrose Solutions Sodium Chloride Solutions Osmotic Osmotic Solute Pressure Mol, Frac. Wt. % Pressure Salts (atm) × 10³ (atm) 0 0 0 1.00 7.10 2.48 3.45* 25.02 7.48 7.50 58.43 15.31 10.00 82.12 26.33 Osmotic Pressure (atm) 0 0.47 4.56 22.55 45.80 96.2 g mol NaC! Density kg H₂O (kg/m³) 0 997.0 0.01 997.4 0.10 1001.1 0.50 1017.2 1.00 1036.2 2.00 1072.3 • Value for standard seawater. 1.798 5.375 10.69 17.70
