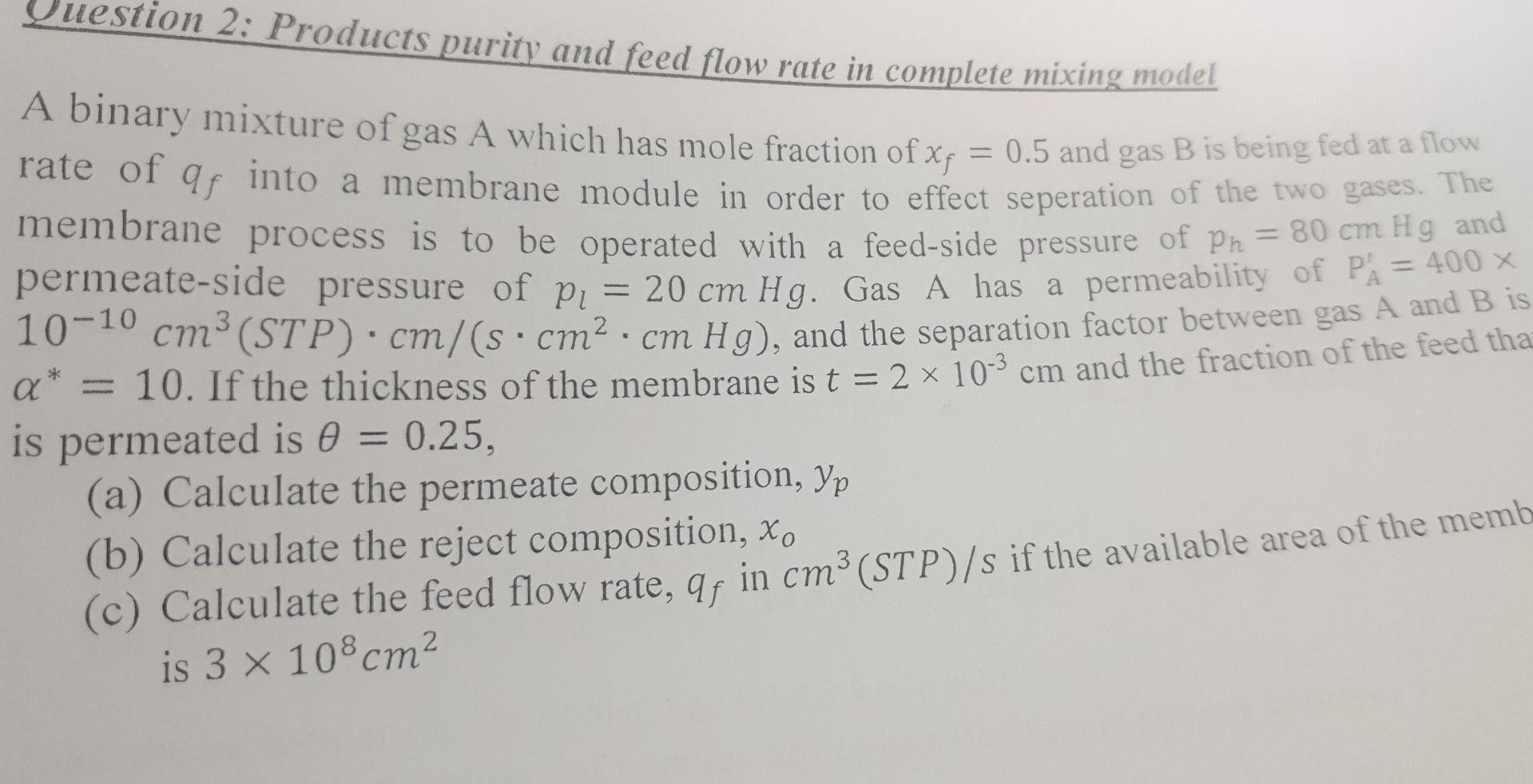

Question 2: Products purity and feed flow rate in complete mixing model A binary mixture of gas A which has mole fraction of xf = 0.5 and gas B is being fed at a flow rate of qf into a membrane module in order to effect seperation of the two gases. The membrane process is to be operated with a feed-side pressure of Ph = 80 cm Hg and permeate-side pressure of p₁ = 20 cm Hg. Gas A has a permeability of PA = 400 X 10-10 cm³ (STP) cm/(s. cm² cm Hg), and the separation factor between gas A and B is 10. If the thickness of the membrane is t = 2 × 10-³ cm and the fraction of the feed that is permeated is 0 = 0.25, . a*: = (a) Calculate the permeate composition, yp (b) Calculate the reject composition, xo (c) Calculate the feed flow rate, qf in cm³ (STP)/s if the available area of the memb is 3 x 108 cm²
