Time allowed: 30 min Quiz # 3 (max. grade: 5) + Quiz on POLYMATH (max. grade: 5)-Max. time allowed: 30 min 1. (5 points

[answerhappygod]

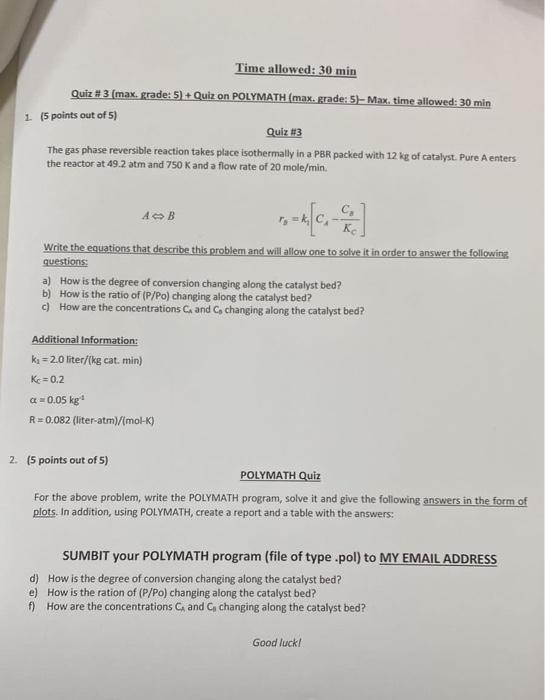

Time Allowed 30 Min Quiz 3 Max Grade 5 Quiz On Polymath Max Grade 5 Max Time Allowed 30 Min 1 5 Points 1 (37.01 KiB) Viewed 29 times

Time allowed: 30 min Quiz # 3 (max. grade: 5) + Quiz on POLYMATH (max. grade: 5)-Max. time allowed: 30 min 1. (5 points out of 5) Quiz #13 The gas phase reversible reaction takes place isothermally in a PBR packed with 12 kg of catalyst. Pure A enters the reactor at 49.2 atm and 750 K and a flow rate of 20 mole/min. A B S-AG- Write the equations that describe this problem and will allow one to solve it in order to answer the following questions: a) How is the degree of conversion changing along the catalyst bed? b) How is the ratio of (P/Po) changing along the catalyst bed? c) How are the concentrations CA and Co changing along the catalyst bed? Additional Information: k₁=2.0 liter/(kg cat. min) Kc = 0.2 a = 0.05 kg ¹ R=0.082 (liter-atm)/(mol-K) 2. (5 points out of 5) POLYMATH Quiz For the above problem, write the POLYMATH program, solve it and give the following answers in the form of plots. In addition, using POLYMATH, create a report and a table with the answers: SUMBIT your POLYMATH program (file of type .pol) to MY EMAIL ADDRESS d) How is the degree of conversion changing along the catalyst bed? e) How is the ration of (P/Po) changing along the catalyst bed? f) How are the concentrations C, and C, changing along the catalyst bed? Good luck!
