Plate is connected to the column using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate

Post by answerhappygod »

Plate Is Connected To The Column Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1
Plate Is Connected To The Column Using Fillet Welds As Shown The Size Of Weld Is 12 Mm Determine The Following Locate 1 (112.62 KiB) Viewed 26 times

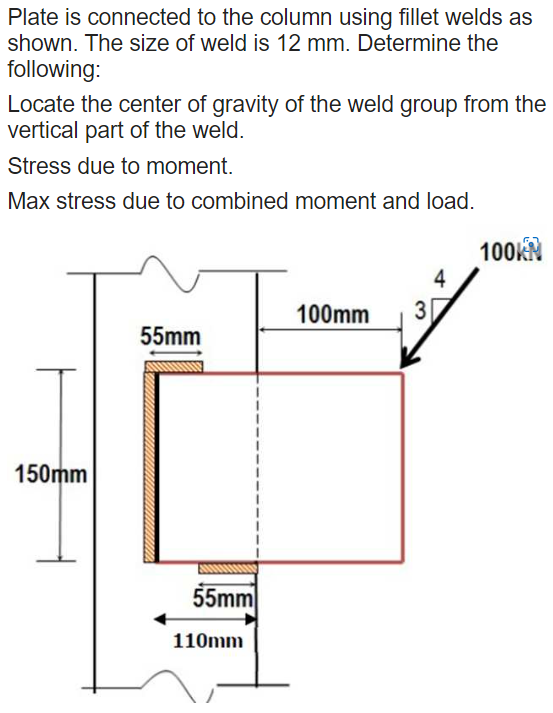

Plate is connected to the column using fillet welds as shown. The size of weld is 12 mm. Determine the following: Locate the center of gravity of the weld group from the vertical part of the weld. Stress due to moment. Max stress due to combined moment and load. 100KN 4 100mm 55mm 150mm 55mm 110mm 3
